6GK14115AB10

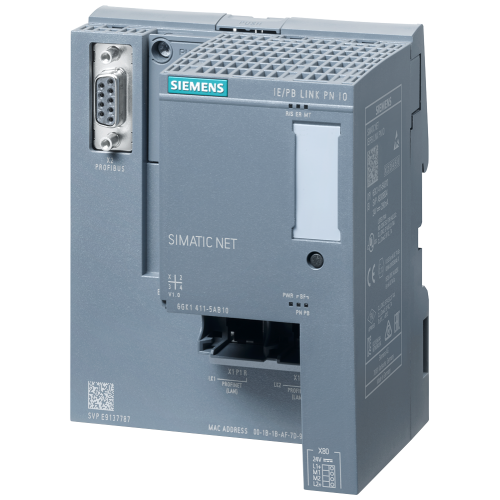

IE/PB LINK PN IO, gateway between IE and PROFIBUS, with PN IO functionality

Manufacturer's No: 6GK1411-5AB10     Manufacturer: Siemens
IE/PB LINK PN IO, gateway between IE and PROFIBUS, with PN IO functionality

View 3D

Availability In Stock

£1,616.00
  • IE/PB link PN IO gateway for connecting Industrial Ethernet and PROFIBUS
  • PROFINET IO proxy with real-time communication
  • Time-of-day synchronization via SIMATIC processes, NTP, SNMP v1, LLDP
  • S7 routing and data record routing capabilities
  • Supports connection of up to 64 S7/DPV0/DPV1 slaves
  • Supports DP/PA link and DP/FF link
  • Features 10/100 Mbit/s fast Ethernet connectivity
  • Offers MRP for network redundancy
  • Supports 9.6 Kbit/s up to 12 Mbit/s PROFIBUS communication
  • Firmware loading via configuration tool

Read more

  • Redundant power supply for reliability
  • Firmware version V4.0

Accessories



Product

Manufacturer Material ID -
6GK1411-5AB10
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Number of interfaces PROFINET -
1
Performance level acc. EN ISO 13849-1 -
None
Number of HW-interfaces industrial Ethernet -
1
Transmission rate -
100000000 kiloBit/second
Performance level acc. to EN ISO 13849-1 -
None
Type of data transmission -
Other
SIL according to IEC 61508 -
None
Depth -
74 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
117 Millimetre
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Redundancy -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Width -
100 Millimetre

Availability In Stock

£1,616.00
