6XV18782A

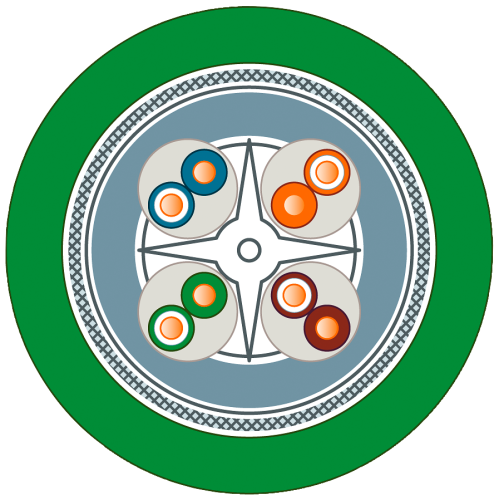

IE FC TP Standard Cable GP (Type C) 4 x 2, AWG 24, CAT6, sold by the meter, min. 20 m

Manufacturer's No: 6XV1878-2A     Manufacturer: Siemens
IE FC TP Standard Cable GP (Type C) 4 x 2, AWG 24, CAT6, sold by the meter, min. 20 m

View 3D

Availability Back Order

£4.00
  • Industrial Ethernet FastConnect TP standard cable
    • CAT6A cable
    • 4x2 TP installation
    • AWG24
    • For connection to IE FC RJ45 plug
    • Sold by the meter
    • Delivery unit: max. 2000 m
    • Minimum order quantity: 20 m


Product

Manufacturer Material ID -
6XV1878-2A
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
20
RoHs Compliance -
Yes
UNSPSC -
26121629

Technical Specification

-
Siemens
Nominal cross section conductor -
- Square millimetre
Circuit integrity -
UN
AWG-size -
-
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Colour outer sheath -
Green
Diameter conductor -
0.51 Millimetre
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Polyvinyl chloride (PVC)
Reaction-to-fire class according to EN 13501-6 -
Eca
Specification material outer sheath -
Other
Core insulation material -
Other
Core identification -
Colour
Flame retardant -
No
Stranding element -
Pairs
Sheath colour -
Green
Category -
6
Conductor Diameter -
0.51 Millimetre
Individual screen type -
None
Overall screen type -
Foil + braiding
Sheath material -
Polyvinyl chloride (PVC)
Conductor category -
Class 1 = solid
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Number of stranding elements -
4
Protective sheath -
No
Number of cores -
8
Stranding -
Bundle
Outer diameter approx. -
8 Millimetre
NVP value -
67 Percentage
Reaction-to-fire according to EN 13501-6: Class -
Eca
Conductor surface -
Bare
Min. permitted bending radius, moving application with forced guidance -
40 Millimetre
Sheath material specification -
Other
Min. permitted bending radius, moving application/free movement -
40 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
40 Millimetre

Availability Back Order

£4.00
