6XV18715BH10

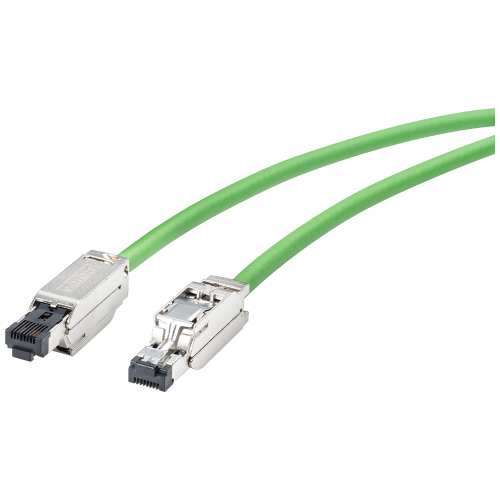

IE Cable 2 x 2, 2 x IE FC RJ45 connector 180 2x2, Cat 5e, IP20, 1 m

Manufacturer's No: 6XV1871-5BH10     Manufacturer: Siemens
IE Cable 2 x 2, 2 x IE FC RJ45 connector 180 2x2, Cat 5e, IP20, 1 m

View 3D

Availability Back Order

£40.00
  • IE FC Trailing Cable GP pre-assembled with 2x IE FC RJ45 Plug-180
  • Cable length: 1.0 meter


Product

Manufacturer Material ID -
6XV1871-5BH10
Net Weight -
0.13kg

Additional Product Information

Commodity Code -
85444210
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
26121609

Technical Specification

-
Siemens
AWG-size -
-
Anti-kink sleeve -
UN
Cable construction -
UN
Colour anti-kink sleeve -
UN
Case connector connection 1 -
UN
Case connector connection 2 -
UN
Material connector of connector housing connection 2 -
UN
Cable type -
Other
Pin assignment -
1:1
Length -
1 Metre
Colour outer sheath -
Green
Type of connector connection 1 -
RJ45 8(4)
Type of connector connection 2 -
RJ45 8(4)
Degree of protection (IP) -
Other
Material connector of connector housing connection 1 -
Metal
Core insulation material -
Other
Core identification -
Colour
Flame retardant -
No
Circuit integrity -
No
Stranding element -
Quad
Sheath colour -
Green
Category -
5E
Conductor Diameter -
0.75 Millimetre
Individual screen type -
None
Overall screen type -
Foil + braiding
Sheath material -
Polyvinyl chloride (PVC)
Permitted cable outer temperature during assembling/handling -
-25 Degrees celsius
Permitted cable outer temperature after assembling without vibration -
-25 Degrees celsius
Number of stranding elements -
2
Protective sheath -
No
Number of cores -
4
Stranding -
Bundle
Outer diameter approx. -
6.5 Millimetre
NVP value -
66 Percentage
Reaction-to-fire according to EN 13501-6: Class -
None
Conductor surface -
Bare
Min. permitted bending radius, moving application with forced guidance -
58.5 Millimetre
Sheath material specification -
Other
Min. permitted bending radius, moving application/free movement -
58.5 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
58.5 Millimetre

Availability Back Order

£40.00
