6XV18712T

IE TP Train Cable 2X2; Cat5 TP Installation Cable F. Train Applications, for Connection-FC RJ45 Plug 2X2, FC M12 Plug Pro 2X2

Manufacturer's No: 6XV1871-2T     Manufacturer: Siemens
IE TP Train Cable 2X2; Cat5 TP Installation Cable F. Train Applications, for Connection-FC RJ45 Plug 2X2, FC M12 Plug Pro 2X2

View 3D

Availability Back Order

£8.00
  • Cable Type: CAT5e TP installation cable
  • Application: Rail applications
  • Connectors: FC RJ45 plug 2x2, FC M12 plug pro 2x2
  • Certification: Railway-certified

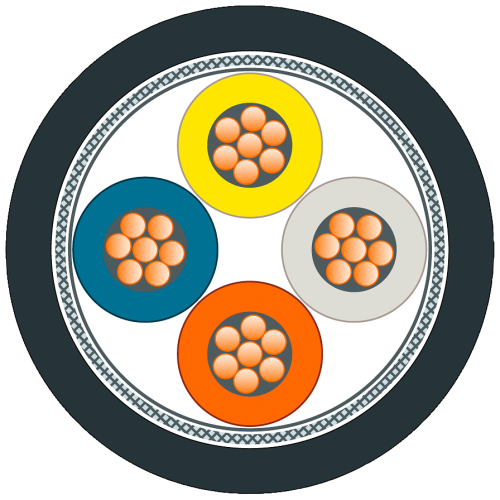

  • Configuration: 4-core, shielded
  • Length: Sold by the meter, max delivery unit 2000 m
  • Minimum Order Quantity: 20 m


Product

Manufacturer Material ID -
6XV1871-2T
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
CH
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
yes
UNSPSC -
26121629

Technical Specification

-
Siemens
Nominal cross section conductor -
- Square millimetre
Circuit integrity -
UN
AWG-size -
-
NVP value -
- Percentage
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Colour outer sheath -
Black
Diameter conductor -
0.75 Millimetre
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Other
Low smoke (acc. EN 61034-2) -
Reaction-to-fire class according to EN 13501-6 -
None
Specification material outer sheath -
Other
Core insulation material -
Other
Core identification -
Colour
Flame retardant -
No
Stranding element -
Quad
Sheath colour -
Black
Category -
5
Conductor Diameter -
0.75 Millimetre
Individual screen type -
None
Overall screen type -
Foil + braiding
Sheath material -
Other
Conductor category -
Class 1 = solid
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Number of stranding elements -
2
Protective sheath -
No
Number of cores -
4
Stranding -
Bundle
Outer diameter approx. -
6.6 Millimetre
Low smoke (acc. BS EN 61034-2) -
Reaction-to-fire according to EN 13501-6: Class -
None
Conductor surface -
Tinned
Min. permitted bending radius, moving application with forced guidance -
40 Millimetre
Sheath material specification -
Other
Min. permitted bending radius, moving application/free movement -
40 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
40 Millimetre
