6XV18712L

IE FC TP Food cable;2 x without;2x2;Cat5e;halogen-free;PE;robust

Manufacturer's No: 6XV1871-2L     Manufacturer: Siemens
IE FC TP Food cable;2 x without;2x2;Cat5e;halogen-free;PE;robust

View 3D

Availability Back Order

£4.00
  • Industrial Ethernet FC TP FOOD cable GP 2x2 (PROFINET type C)
  • TP installation cable for use in the food and luxury food industry

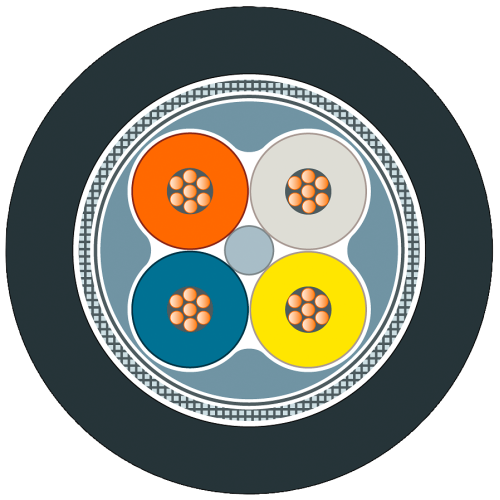

  • 4-core, shielded, CAT5E
  • Sold by the meter, with a delivery unit maximum of 1000m
  • Minimum order quantity: 20m


Product

Manufacturer Material ID -
6XV1871-2L
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Minimum Order Quantity -
20
UNSPSC -
26121629

Technical Specification

-
Siemens
Nominal cross section conductor -
- Square millimetre
Circuit integrity -
UN
AWG-size -
-
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Colour outer sheath -
Black
Diameter conductor -
0.75 Millimetre
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Other
Reaction-to-fire class according to EN 13501-6 -
Fca
Specification material outer sheath -
Polyethylene (PE)
Core insulation material -
Other
Core identification -
Colour
Flame retardant -
No
Stranding element -
Quad
Sheath colour -
Black
Category -
5E
Conductor Diameter -
0.75 Millimetre
Individual screen type -
None
Overall screen type -
Foil + braiding
Sheath material -
Other
Conductor category -
Class 1 = solid
Permitted cable outer temperature during assembling/handling -
-50 Degrees celsius
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Number of stranding elements -
2
Protective sheath -
No
Number of cores -
4
Stranding -
Bundle
Outer diameter approx. -
6.5 Millimetre
NVP value -
66 Percentage
Reaction-to-fire according to EN 13501-6: Class -
Fca
Conductor surface -
Bare
Min. permitted bending radius, moving application with forced guidance -
49 Millimetre
Sheath material specification -
Polyethylene (PE)
Min. permitted bending radius, moving application/free movement -
49 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
49 Millimetre

Availability Back Order

£4.00
