6XV18712G

IE Ground Cable 2X2 Ground Cable 4-Wire Shielded, Sold By The Meter Max. Consignment 1000M Min. Order Quantitiy: 20M

Manufacturer's No: 6XV1871-2G     Manufacturer: Siemens
IE Ground Cable 2X2 Ground Cable 4-Wire Shielded, Sold By The Meter Max. Consignment 1000M Min. Order Quantitiy: 20M

View 3D

Availability Back Order

£4.00

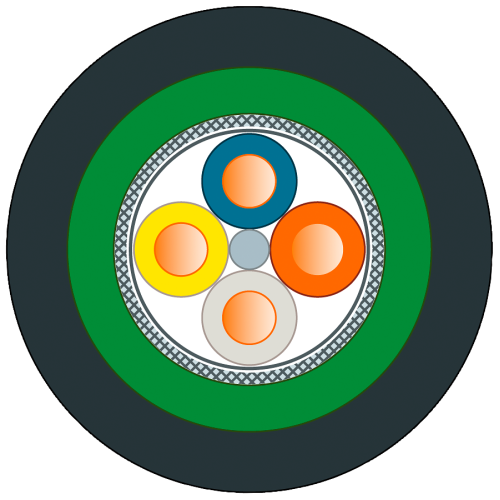

  • Underground cable
    • 4-core shielded
    • Cat5e
    • 2x2 ground cable
    • Sold by the meter
      • Minimum order quantity: 20 meters
      • Maximum delivery unit: 1000 meters


Product

Manufacturer Material ID -
6XV1871-2G
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Minimum Order Quantity -
20
UNSPSC -
26121609

Technical Specification

-
Siemens
Nominal cross section conductor -
- Square millimetre
Circuit integrity -
UN
AWG-size -
-
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Colour outer sheath -
Black
Diameter conductor -
0.64 Millimetre
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Polyvinyl chloride (PVC)
Underground installation -
Reaction-to-fire class according to EN 13501-6 -
Fca
Specification material outer sheath -
Other
Core insulation material -
Other
Core identification -
Colour
Flame retardant -
No
Stranding element -
Quad
Sheath colour -
Black
Category -
5E
Conductor Diameter -
0.64 Millimetre
Individual screen type -
None
Overall screen type -
Foil + braiding
Sheath material -
Polyvinyl chloride (PVC)
Conductor category -
Class 1 = solid
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Number of stranding elements -
2
Protective sheath -
No
Number of cores -
4
Suitable for underground installation -
Stranding -
Bundle
Outer diameter approx. -
9 Millimetre
NVP value -
64 Percentage
Reaction-to-fire according to EN 13501-6: Class -
Fca
Conductor surface -
Bare
Min. permitted bending radius, moving application with forced guidance -
80 Millimetre
Sheath material specification -
Other
Min. permitted bending radius, moving application/free movement -
80 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
80 Millimetre

Availability Back Order

£4.00
