6XV18702J

IE Hybrid Cable 2x2+4x0.34, 4xCu 0.75 mm + 4xCu 0.34 mm2, sold by the meter

Manufacturer's No: 6XV1870-2J     Manufacturer: Siemens
IE Hybrid Cable 2x2+4x0.34, 4xCu 0.75 mm + 4xCu 0.34 mm2, sold by the meter

View 3D

Availability Back Order

£6.00

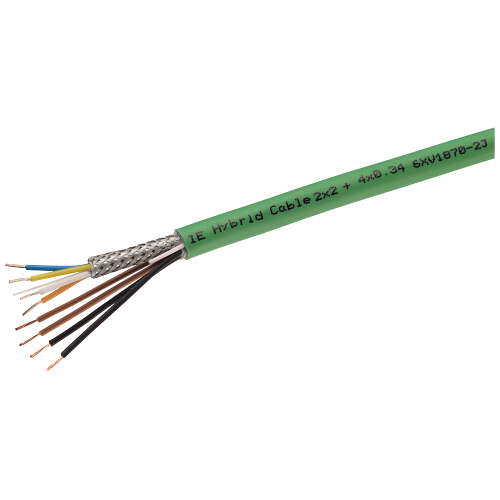

  • Industrial Ethernet Hybrid Cable
  • 2x2 twisted pairs + 4x 0.34 mm² conductors
  • Flexible cable with shielded 4x CU CAT5 (0.75 mm) and 4x CU (0.34 mm²)
  • Designed for IE FC modular outlet with Power insert and IP67 hybrid plug-in connector
  • Sold by the meter, maximum delivery unit of 1000 m
  • Minimum order quantity of 20 m


Product

Manufacturer Material ID -
6XV1870-2J
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
20
RoHs Compliance -
yes
UNSPSC -
26121629

Technical Specification

-
Siemens
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Data and communication cable (copper) -
Reaction-to-fire class according to EN 13501-6 -
Eca
Energy cable -
Data and communication cable -
Reaction-to-fire according to EN 13501-6: Smoke production -
None
Reaction-to-fire according to EN 13501-6: Class -
Eca
Reaction-to-fire according to EN 13501-6: Acidity -
None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles -
None
Min. permitted bending radius, moving application with forced guidance -
85 Millimetre
Min. permitted bending radius, moving application/free movement -
85 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
85 Millimetre
