6XV18402AU10

IE FC TP std. cable GP;2x2;1000m;Cat5e;PVC;robust

Manufacturer's No: 6XV1840-2AU10     Manufacturer: Siemens
IE FC TP std. cable GP;2x2;1000m;Cat5e;PVC;robust

View 3D

Availability In Stock

£1,495.00

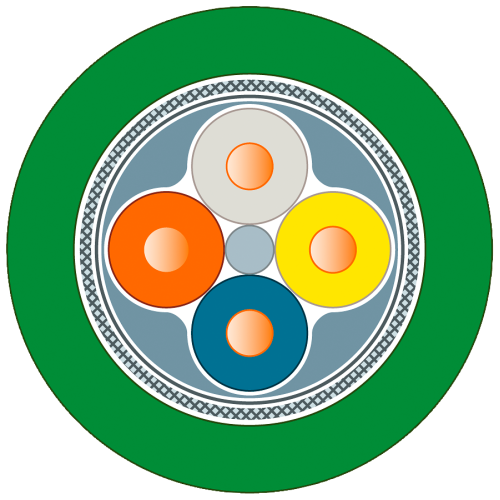

  • Industrial Ethernet FC TP standard cable
  • TP installation cable for connection to IE FC RJ45 2x2
  • Shielded Cat5e cable
  • Length: 1000 meters


Product

Manufacturer Material ID -
6XV1840-2AU10
Net Weight -
78.27kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
yes
UNSPSC -
26121629

Technical Specification

-
Siemens
Nominal cross section conductor -
- Square millimetre
Circuit integrity -
UN
AWG-size -
-
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Specification core insulation -
UN
Colour outer sheath -
Green
Diameter conductor -
0.64 Millimetre
Screen over stranding element -
None
Screen over stranding -
Foil + braiding
Material outer sheath -
Polyvinyl chloride (PVC)
Reaction-to-fire class according to EN 13501-6 -
Eca
Specification material outer sheath -
Other
Core insulation material -
Other
Core identification -
Colour
Flame retardant -
No
Stranding element -
Quad
Sheath colour -
Green
Category -
5E
Conductor Diameter -
0.64 Millimetre
Individual screen type -
None
Overall screen type -
Foil + braiding
Sheath material -
Polyvinyl chloride (PVC)
Conductor category -
Class 1 = solid
Permitted cable outer temperature during assembling/handling -
-40 Degrees celsius
Permitted cable outer temperature after assembling without vibration -
-40 Degrees celsius
Number of stranding elements -
2
Protective sheath -
No
Number of cores -
4
Stranding -
Bundle
Outer diameter approx. -
6.5 Millimetre
NVP value -
66 Percentage
Reaction-to-fire according to EN 13501-6: Class -
Eca
Conductor surface -
Bare
Min. permitted bending radius, moving application with forced guidance -
49 Millimetre
Sheath material specification -
Other
Min. permitted bending radius, moving application/free movement -
49 Millimetre
Min. permitted bending radius, stationary application/permanent installation -
49 Millimetre
