6XV18128A

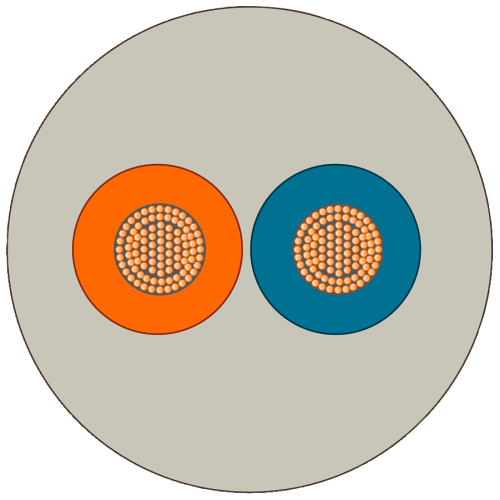

Energy Cable, 2-wire power cable, stranded wire, 2x0.75 mm2, trailing

Manufacturer's No: 6XV1812-8A     Manufacturer: Siemens
Energy Cable, 2-wire power cable, stranded wire, 2x0.75 mm2, trailing

View 3D

Availability Back Order

£3.00
  • Energy cable
  • 2-wire power line
  • Stranded wire
  • 2x 0.75 mm²
  • Trailable
  • Maximum delivery unit: 2000 meters
  • Minimum order quantity: 20 meters
  • Sold by the meter


Product

Manufacturer Material ID -
6XV1812-8A
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85444920
Country of Origin -
DE
Minimum Order Quantity -
20
UNSPSC -
26121629

Technical Specification

-
Siemens
Connection 2 -
UN
Frequency -
- Hertz
Length -
- Metre
Nominal cross section conductor -
0.75 Square millimetre
Colour outer sheath -
Grey
Material outer sheath -
Polyvinyl chloride (PVC)
Degree of protection (IP) -
Other
Reaction-to-fire class according to EN 13501-6 -
Eca
Smoke development class according to EN 13501-6 -
None
Euro class flaming droplets/particles according to EN 13501-6 -
None
Euro class acidity according to EN 13501-6 -
None
Nominal current -
6 Ampere
Nominal cross sectional area of conductor -
0.75 Square millimetre
Connection 1 -
Other
Sheath colour -
Grey
Sheath material -
Polyvinyl chloride (PVC)
Number of cores -
2
Temperature resistance -
-20 Degrees celsius
Outer diameter approx. -
7.4 Millimetre
Nominal voltage -
600 Volt
Degree of protection (IP rating) -
Other
Reaction-to-fire according to EN 13501-6: Smoke production -
None
Reaction-to-fire according to EN 13501-6: Class -
Eca
Reaction-to-fire according to EN 13501-6: Acidity -
None
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles -
None
