6XV18612D

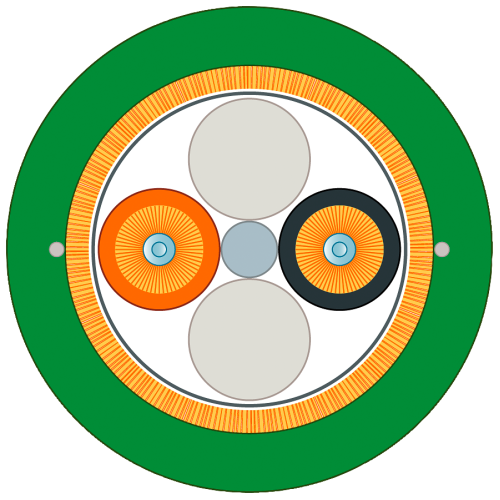

PCF trailing cable GP 200/230, segmentable, PVC outer sheath, UL, by the meter

Manufacturer's No: 6XV1861-2D     Manufacturer: Siemens
PCF trailing cable GP 200/230, segmentable, PVC outer sheath, UL, by the meter

Availability Back Order

£11.00
  • PCF Trailing Cable
  • Suitable for GP (200/230) applications
  • UL approved
  • Splittable design without connector
  • Sold by the meter
  • Maximum length: 2000 meters
  • Minimum order quantity: 20 meters


Product

Manufacturer Material ID -
6XV1861-2D
Net Weight -
0.09kg

Additional Product Information

Commodity Code -
85447000
Country of Origin -
DE
Minimum Order Quantity -
20
UNSPSC -
26121609

Technical Specification

-
Siemens
Circuit integrity -
UN
Category -
UN
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Colour outer sheath -
Green
Material outer sheath -
Polyvinyl chloride (PVC)
Reaction-to-fire class according to EN 13501-6 -
Eca
Specification material outer sheath -
Other
Fibre type -
Multi mode 200/300
Flame retardant -
In accordance with IEC/EN 60332-1-2
With strain relief -
Sheath material -
Polyvinyl chloride (PVC)
Type of tube -
Other
Number of fibres per tube -
1
Cable metal free -
Outer diameter approx. -
8.8 Millimetre
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath material specification -
Other
Min. permitted bending radius, stationary application/permanent installation -
175 Millimetre
Number of fibres -
2
Sheath colour -
Green

Availability Back Order

£11.00
