6XV18612A

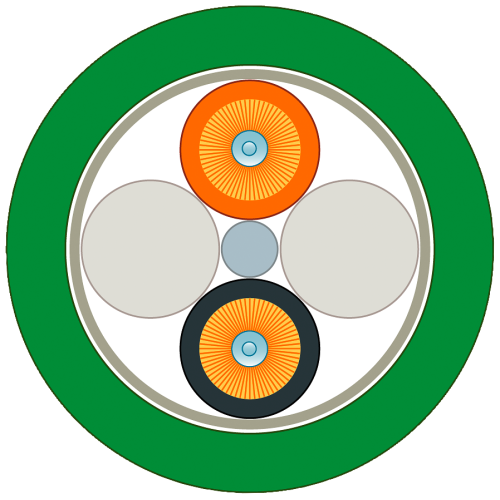

PCF standard cable GP 200/230, segmentable, PVC outer sheath, UL, by the meter

Manufacturer's No: 6XV1861-2A     Manufacturer: Siemens
PCF standard cable GP 200/230, segmentable, PVC outer sheath, UL, by the meter

Availability Back Order

£7.00
  • PCF Standard Cable
  • Cable Type: Standard
  • Configuration: Splittable
  • UL Approved
  • Connector: Not included
  • Sold by the meter
  • Minimum Order Quantity: 20 meters
  • Maximum Length: 2000 meters


Product

Manufacturer Material ID -
6XV1861-2A
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85447000
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
20
RoHs Compliance -
Yes
UNSPSC -
26121609

Technical Specification

-
Siemens
Circuit integrity -
UN
Category -
UN
Smoke development class according to EN 13501-6 -
UN
Euro class flaming droplets/particles according to EN 13501-6 -
UN
Euro class acidity according to EN 13501-6 -
UN
Colour outer sheath -
Green
Material outer sheath -
Polyvinyl chloride (PVC)
Reaction-to-fire class according to EN 13501-6 -
Eca
Specification material outer sheath -
Other
Fibre type -
Multi mode 200/300
Flame retardant -
In accordance with IEC/EN 60332-1-2
With strain relief -
Sheath material -
Polyvinyl chloride (PVC)
Type of tube -
Other
Number of fibres per tube -
1
Cable metal free -
Outer diameter approx. -
7.2 Millimetre
Reaction-to-fire according to EN 13501-6: Class -
Eca
Sheath material specification -
Other
Min. permitted bending radius, stationary application/permanent installation -
105 Millimetre
Number of fibres -
2
Sheath colour -
Green

Availability Back Order

£7.00
