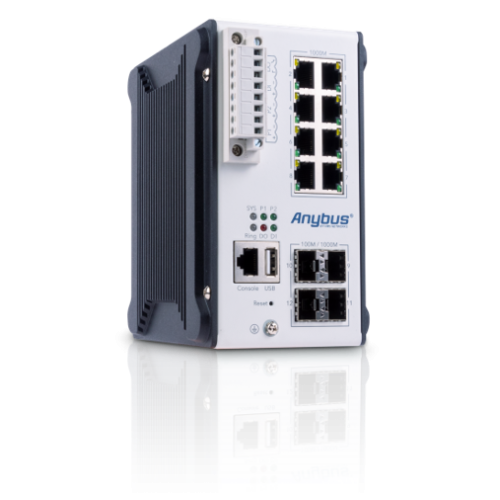

Managed L3 switch

12-port Full Gigabit Ethernet with 8-port RJ 45 and 4-port SFP

Managed L3 switch
Managed L3 switch

FEATURES & BENEFITS

FULL GIGABIT SWITCHING AND ULTRA-HIGH THROUGHPUT

  • 12-port Full Gigabit Ethernet with 8-port RJ 45 and 4-port SFP
  • 16k MAC address table
  • 1.5 MB packet buffer memory for H.264 burst
  • 9 kB jumbo frame
  • Store-and-forward with non-blocking switch fabric

DYNAMIC ROUTING WITH REDUNDANCY PROTECTION

  • RIPv1&v2, OSPFv1&v2 for intra-domain routing within an autonomous system
  • Efficient unicast/multicast static routing
  • VRRP for reliability and availability

ITU-T G.8032 V1/V2 ERPS RING REDUNDANCY

  • ITU standard Ring redundancy protocol
  • Provides sub-50ms protection and recovery switching for Ethernet traffic
  • Interoperability with most 3rd party industrial switches, providing fast recovery time
  • Efficient network interconnection and topology with ERPS Chain, multiple chains

CYBER SECURITY

  • L2-L7 IPv4/IPv6 Access Control List (ACL)
  • DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
  • 802.1Q VLAN, Private VLAN, Advanced Port Security
  • Multi-Level user authentication
  • HTTPS/SSH/SFTP, 256-bit encryption
  • IEEE 802.1X port-based authentication
  • MAB for non-802.1X compliant end devices
  • RADIUS/TACACS+ centralized user authentication

RUGGED DESIGN

  • EN50121-4 for railway trackside applications
  • Top level EMC protection and excellent heat dissipation design for operating in -40 to 75oC environment
  • IEC 61000-6-2/4 Heavy Industrial Environment

MANAGEMENT FEATURES

  • Various configuration paths, including WebGUI, CLI, SNMP and RMON
  • IEEE 1588v1/v2 PTP time management
  • LLDP topology control
  • USB for backup/restore and firmware update
  • Software utility interface for LAN device management
  • NMS for individual component monitoring

Ethernet

8 x 10/100/1000Base-T RJ-45

4 x 100/1000Base SFP, DDM

Console

1 x RS232 (RJ45) 115200.n.8.1

USB

1 x USB type A

Operating Temp.

-40°C-75°C , 0%-95% Non- Condensing

Data speeds

1000Base-TX/FX

100Base-TX/FX

10Base-TX/FX

Power

24 VDC (10-60 VDC)

Max. 16.08W

Support for dual power supplies

Weight

1 380 g

Housing material

Steel/aluminium

IP protection class

IP31

Dimensions

150 x 126.5 x 85.5 mm (without DIN rail clip)

Mounting

DIN rail mount (bracket included)

Configuration

CGI WebGUI, CLI, SNMP

 Security

IEEE 802.1x/RADIUS, Private VLAN, ACL (MAC/IP filter)

 Redundancy

Rapid spanning tree protocol (RSTP)/Multiple spanning tree protocol
(MSTP)
ITU-T G.8032 v1/v2 Ethernet ring protection switching (ERPS)
Virtual router redundancy protocol (VRRP)

 L3 Routing

Static/dynamic IP routing, VLAN routing, RIP v1/v2, OSPF v1/v2, IGMP and Multicast routing

 Traffic Management

Flow control, Port trunk/802.3ad LACP, VLAN, Private VLAN, GVRP, GMRP, QinQ, QoS, IGMP snooping v1/v2/v3, Rate control, Storm control, Port mirroring

 Network Management

IPv4/IPv6, SNMP v1/v2c/v3, RMON, LLDP, DHCP server/client/Option 82, SysLog
