Terminator T1

The T1 has some special features that make it an essential part of your infrastructure

Terminator T1
Terminator T1

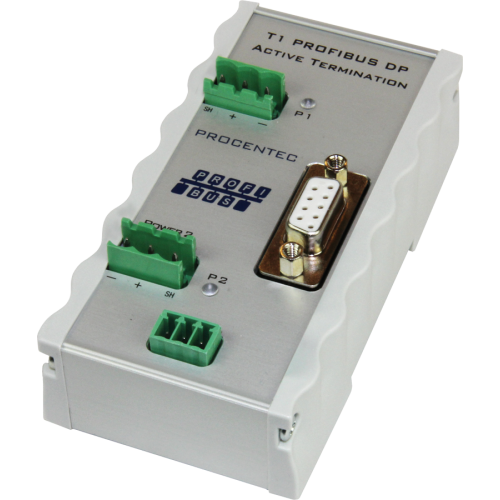

Active termination for PROFIBUS segments

The T1 has some special features that make it an essential part of your infrastructure:
  • A redundant power supply to increase the reliability of the termination and diagnostic LEDs to indicate the status of each power source.
  • An additional DB9 connector to hook-up diagnostic tools and to offer more wiring flexibility. The DB9 connector can also be used as the primary bus connection if needed. Internally, it is connected directly to the screw terminal.
  • The T1 Terminator can be installed on a standard DIN-rail.

Technical specifications

PROFIBUS

  • 390 / 220 / 390 Ohm
  • Supports all PROFIBUS RS 485 protocols
  • 9.6 kbps..12 Mbps
  • Removable screw terminals and a DB9 connector
  • Connection speed: 9.6 kbps .. 12 Mbps (automatic detection)
  • DB9 monitoring port

Channels

  • 1 galvanicly isolated channel

Power supply

  • Redundant power supply
  • Operating Voltage: 19..28 VDC
  • Current consumption: < 60 mA
  • Diagnostic LEDs to indicate the status of the power supply

Dimensions and weight

  • Dimensions (LxWxH): 106 x 55 x 33 mm (without plugs)
  • Weight: 125 g
