6ES71384GA500AB0

SIMATIC ET 200S 4SI IO-Link

Manufacturer's No: 6ES7138-4GA50-0AB0     Manufacturer: Siemens

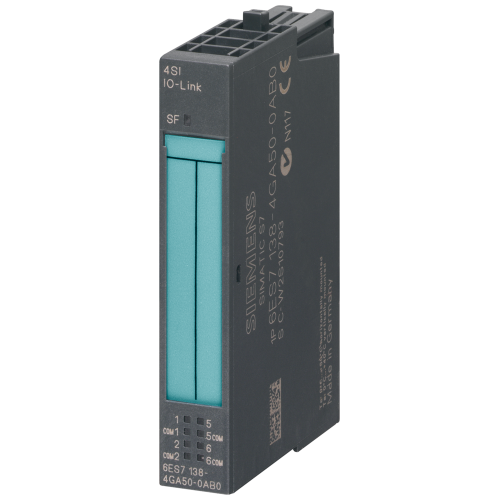

SIMATIC ET 200S 4SI IO-Link

View 3D

Availability Back Order

POA
  • SIMATIC ET 200S 4SI IO-Link module
  • Electronics module for ET 200S with 4 point-to-point interfaces
  • IO-Link master functionality
  • Modularly scalable distributed I/O system
  • Designed for installation in small control boxes near machines
  • Can be connected to central controller via PROFINET or PROFIBUS
  • Expandable with up to 64 I/O modules
  • Modules available with standard (ST), high feature (HF), and high speed (HS) functions
  • Easy module and terminal box swapping during operation
  • "Hot swapping" capability increases machine availability and productivity

Accessories



Product

Manufacturer Material ID -
6ES7138-4GA50-0AB0
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
-
Siemens
-
Siemens
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP20
Front build in possible -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP20
Depth -
52 Millimetre
Fieldbus connection over separate bus coupler possible -
Height -
81 Millimetre
IO link master -
Rail mounting possible -
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFINET IO -
System accessory -
Voltage type of supply voltage -
DC
Width -
15 Millimetre
With potential separation -

Availability Back Order

POA
