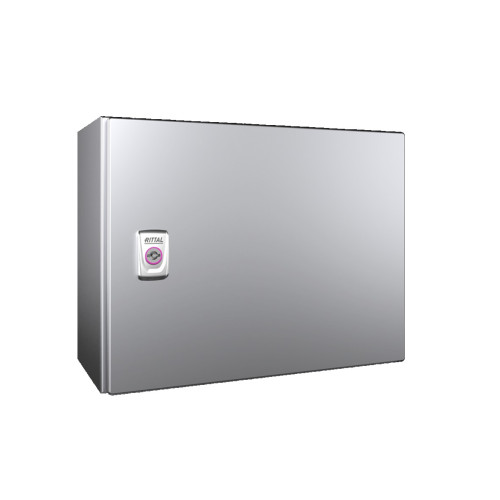

Compact enclosure AX (ss)

The robust stainless steel enclosure features an integral locator system, enabling fast, easy, reliable and extensive system configuration with no drilling required.

Compact enclosure AX (ss)
Compact enclosure AX (ss)
Compact enclosures AX
Basic enclosure AX Wall-mounted enclosures AX
with 482.6 mm (19") mounting
angles, depth-variable
Operating housings AX
with handle strips
All enclosure panels may be taken directly from the packaging, without dismantling,
and machined
The aluminium front panel is easily
removed and machined
Interior installation on a 25 mm pitch
pattern; no machining required
The 482.6 mm (19") mounting angles
support depth-variable mounting on a
25 mm pitch pattern
Interior installation on a 25 mm pitch
pattern; no machining required
Wall mounting brackets are easily
secured from the outside with a
self-tapping screw while retaining the
UL approval
Wall mounting brackets are easily
secured from the outside with a
self-tapping screw
The support arm may be fitted directly
without machining
A QR code on the enclosure, door and mounting plate allows seamless monitoring,
from receipt of incoming goods through to delivery of the finished product
A QR code on the enclosure and door
allows seamless monitoring, from
receipt of incoming goods through to
delivery of the finished product
Simple earthing, even retrospectively,
using machined keyholes in the mount
ing plate and perforated door strip
Simple earthing, even retrospectively,
using machined keyholes in the
perforated door strip
Simple earthing with a continuous
M8 earthing connection
The door and cam lock are quickly fitted with no need for tools Service access optionally from the front
or rear
Up to 33% larger gland plates support
cable entry with ever-higher packing
densities
482.6 mm (19") mounting angles
prefitted and ready to use
Cut-out for support arm connection in
the enclosure roof, may also be used for
the pedestal by rotating the enclosure
