8069773

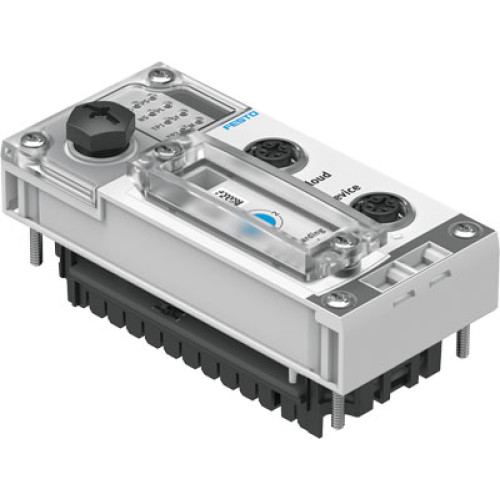

CPX-IOT Gateway

Manufacturer's No: CPX-IOT     Manufacturer: Festo
CPX-IOT Gateway

Availability Back Order

£806.11
  • Dimensions: 50 x 107 x 50 mm
  • Product weight: 130 g
  • Ambient temperature: -5°C to 50°C
  • Storage temperature: -20°C to 70°C
  • Relative air humidity: 95%, non-condensing
  • Degree of protection: IP65, IP67
  • Corrosion resistance class CRC: 0 (No corrosion stress)
  • Vibration resistance: Transport application test with severity level 1
  • Shock resistance: Shock test with severity level 1
  • Protection against direct and indirect contact: PELV

Read more

  • LABS (PWIS) conformity: VDMA24364-B2-L
  • CE mark: EU EMC Directive
  • RoHS-compliant materials
  • Material housing: PA
  • Diagnostics via LED: Modify, Module location, Network status, Power supply, System fault, Connection to the cloud
  • Operator controls: DIP switch for resetting, Rotary switch for operating mode
  • IP address setting: DHCP, Static via web server
  • Field bus protocol: Ethernet, OPC-UA
  • Fieldbus interface: Bus connection to Ethernet-based Festo devices
  • Field bus connection type: Socket, M12x1, D-coded to EN 61076-2-101
  • Field bus interface electrical isolation: Yes
  • Field bus transmission rate: 100 Mbit/s
  • Ethernet interface protocol: TCP/IP
  • Ethernet interface function: Connection to MQTT broker
  • Ethernet interface connection system: M12x1, D-coded to EN 61076-2-101
  • Configuration support: Integrated web server
  • CPU data: 256 MB RAM, Dual Core 533 MHz
  • Nominal DC operating voltage: 24 V
  • Permissible voltage fluctuations: ± 25%
  • Intrinsic current consumption: Typically 80 mA
  • Power failure bridging: 10 ms


Product

Manufacturer Material ID -
CPX-IOT
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
UNSPSC -
32151701
Festo

Availability Back Order

£806.11
