eMobility Charging
Charging the evolution of eMobility.
Electromobility is the norm. Through combined expertise with many years of know-how, and innovative and high-performance products we can leverage a more sustainable future for our customers by offering state-of-the-art solutions that go beyond the need of initial charging station but a complete system for various use case requirements.
Siemens TIA Portal Webinar Series 3
Siemens EV Charging Meets TIA Portal
Overview
Creating a new revenue stream while helping deliver sustainability targets.
The popularity of electric vehicles is on the rise. As a forward-thinking business owner in a gas station, shopping centre, supermarket, parking, or Charge Point Operator, adding electric vehicle charging stations to their existing infrastructure opens a great potential not only to create a new revenue stream but also play an important aspect of delivering sustainability objective.
Industry challenge
The need for holistic approach for a successful EV charging infrastructure - addressing the increasing pressure to accelerate the delivery of decarbonisation and NetZero targets.
It is essential to understand that installing EV chargers goes beyond providing a charging point for electric vehicles. To maximise uptime and minimise losses, you need a holistic approach to the entire electrical infrastructure.
Siemens modular approach begin with the transformer substation connection to the electrical grid. The load management system helps you stay within contract limitations with your power supplier and ensures that you deliver maximum power to your customers during the charging process. The optional microgrid application enables you to integrate on-site batteries or photovoltaic generation. The integrated asset management system helps reduce service costs and ensures seamless operation. Additionally, it maximises the lifespan of your EV charging infrastructure.
SIMATIC EV Charging System
Modular EV charging solution: A holistic approach to delivering a successful EV charging infrastructure.
Installing EV chargers goes beyond providing a charging point for electric vehicles. To maximise uptime and minimise losses, you need a holistic approach to the entire electrical infrastructure.
We provide OEMs and system integrators with charging solution for electric vehicles including modern, programmable SIMATIC controllers, electrical components and application examples for AC and DC charging stations.
To discuss your requirements or for any question, please speak with our team.
EV Charging Solution Components
Key products to support your E-Charging application.
Often, charging stations must be able to withstand extreme conditions, operate 24/7, and depend on reliable electrical components to help them run. Some of the products from Siemens SIRIUS and SENTRON family can help you meet these needs. Their tested components are characterised by ruggedness and long life and help ensure maximum availability of your charging station.
Components for Electric Vehicle Charging
Example of possible products according to EV Charging component requirements.
Wallbox
- Contactor: Insta Contactor 5TT5

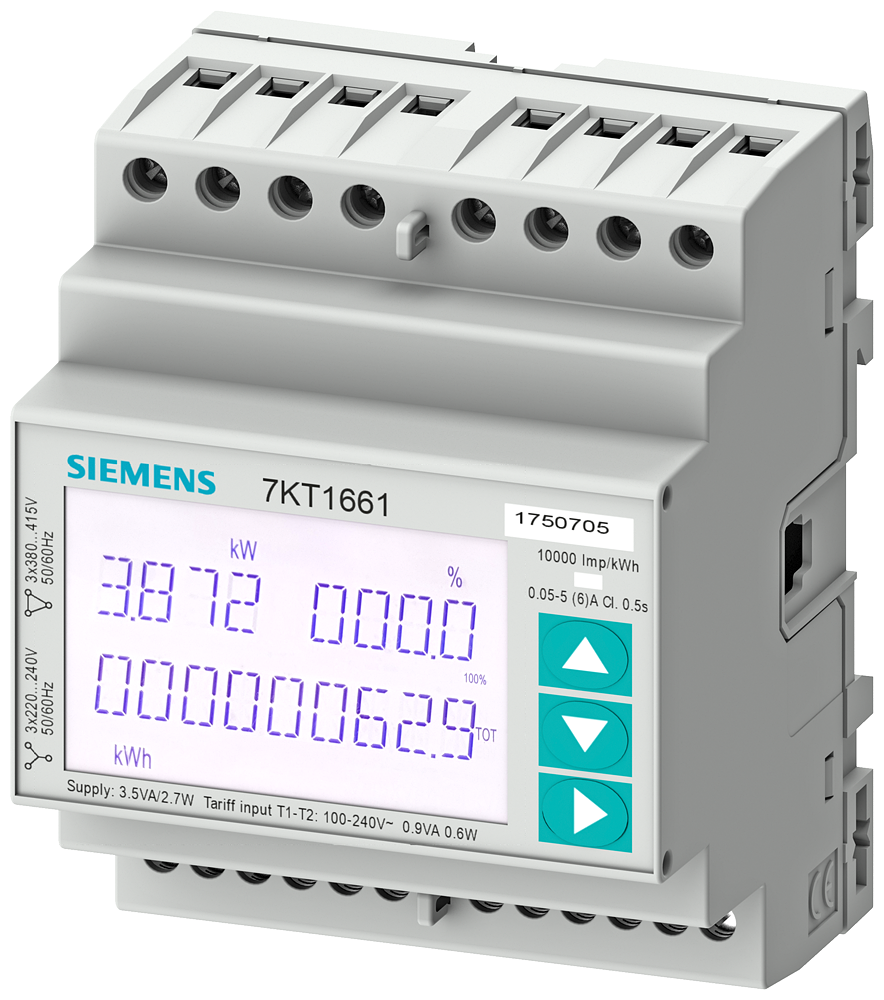

- Energy meter: PAC 1600

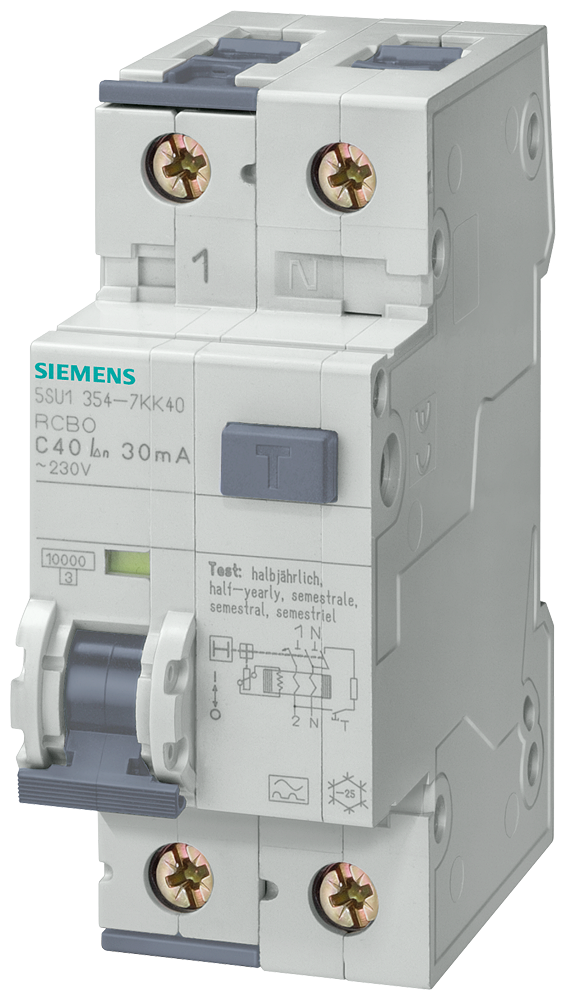

- RCBO: Residual current protection devices 5SU1
- RCCB: Residual current operated circuit breaker 5SV3 Type B
- MCB: 5SL6
AC Charger
- Remote Control for MCB: Remote Control 5ST3053
- Line Protection MCB with Aux-Sw: Circuit Breaker 5SY4 with Auxiliary current switch 5ST3010
- RCCB: Residual current operated circuit breaker 5SV3 Type B
- Remote Control for RCCB: Remote Control 5ST3055
- Energy Meter/ Counter: PAC1600/PAC 2200
- Contactor: Insta Contactor 5TT5
- Switching device: Contactor 3RT2
- MCB: 5SL6
- Motor starter protectors: 3RV2

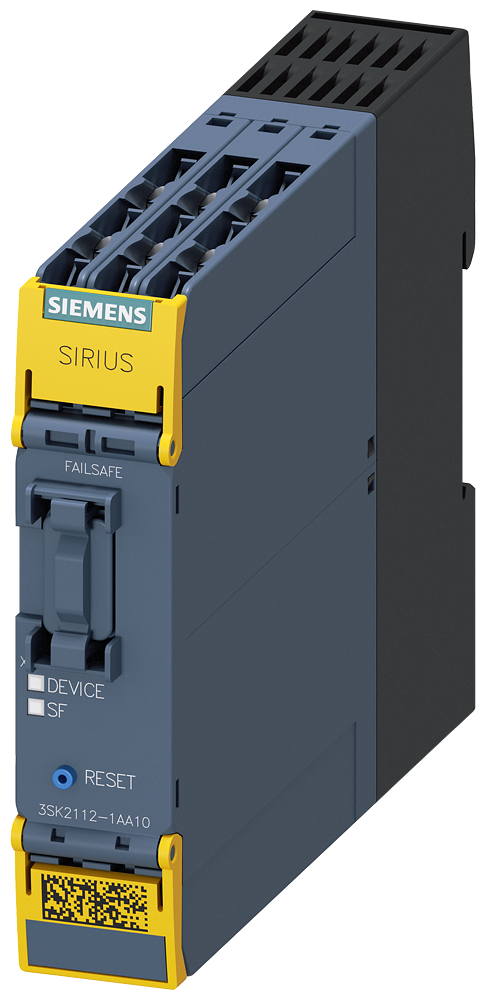

- Safety Relay: 3SK
DC Charger / High Power Charging
- Disconnecting: Switch disconnector 3KD
- Line Protection MCB w. Aux-Sw: Circuit Breaker 5SY4
- Monitoring: Insulation monitoring relay 3UG4
- RCCB: Residual current operated circuit breaker 5SV3
- Line Protection: Miniature circuit breaker 5SP4
- RCBO: Residual current protection devices 5SU1
- Switching devices: Contactor 3RT2
- MCCB: Circuit Breaker 3VA for AC
Get 30%+ discount and expert support from Parmley Graham.
EV Charging Application Bundle
Combine essential components for a robust and dependable SIMATIC system for EV chargers, with the ECC Module that controls the IEC 61851 compliant conductive charging of electric vehicles.
- Applications based on SIMATIC ET200 SP Open Controller with an integrated windows platform and a pre-configured S7-1500 Software Controller with highest security standards
- Enables a direct backend connection using OCPP via 3G, USB connections for RFID readers or Profinet for connecting HMI’s.
- All automation task run on one single and performant device which eliminates redundant and risky interfaces
- Safe and robust components ensure protection of user and vehicle
*Subject to Terms & Conditions
EV Charging Application Bundle Components
Mandatory Items
S7-1500 CPU /ET200 SP
S7-1500 Advanced Controllers
SIMATIC ET200SP
ECC Module
SIMATIC Modular EV
PAC Energy Meters
X 200 Switch
Managed Switches Layer 2
Layer 2 Industrial Ethernet switches feature all functions required to construct a Layer 2 network. A distinction is made between two types: unmanaged Layer 2 and managed Layer 2 switches.
Siemens VersiCharge AC
Smart solution for reliable, convenient charging at home and variants of commercial needs
Siemens VersiCharge AC EV chargers are the perfect charger for any application. Enjoy many benefits and features, such as easy to use app, smart building integration, flexible communication connections open payment options, secure billing, faster charging, smart load management, OCPP, and Modbus communications, and more.
Explore the VersiCharge AC charging solution
Siemens SICHARGE D
Dynamic and high-power compact EV charging system for eCars and eTrucks.
Envision a world where a constant 400 kW power output becomes part of everyday life. Where this high power is allocated dynamically for fastest charging of electric vehicles. Where convenience meets innovation, and every step forward is designed with you in mind.
Explore the SICHARGE D EV charging solution
Siemens SICHARGE UC
Flexible and robust charging solution for eBus and eTruck depot charging.
Siemens SICHARGE UC is a future-oriented charging infrastructure that can handle a diverse mix of eVehicles, seamlessly integrated in any existing environment, optimise your electricity bill with highest efficiency in industry, and ensure that all your eVehicles are always available when you need them.
Explore the SICHARGE UC charging solution
The Siemens Advantage
Why you should rely on Siemens Technology in your charging stations
We provide OEMs and system integrators with charging solution for electric vehicles including modern, programmable SIMATIC controllers, electrical components and application examples for AC and DC charging stations.
With only three charge control modules you will be able to charge with the different connector types according to latest international standards.
It is possible to realise charging stations of any size from single pillars to multi point charging with many charging sockets or plugs.
All automation task run on one single and performant device what eliminates redundant and risky interfaces.
The controller platform is ready for OCPP communication, Load Management and combinable with calibratable meter from 3rd-party vendor
To ease the engineering we offer the free-of-charge application examples.
SIRIUS and SENTRON ensure protection of the user and the car. Reliability is key in this context – especially as charging infrastructure is exposed to all kinds of weather conditions, electrical equipment needs to be robust and of high quality.
Siemens provides a strong solution expertise for e-mobility charging applications. We understand your applications and offer support from the planning phase to realisation and services.
We drive forward standardisation and integrate the latest standards in our products, which in turn benefits our customers.
For your specific requirements, talk to us.
To see how we can help with your systems or if you have any enquiry, please get in touch – we’ll be pleased to help. Send us an email at support@parmley-graham.co.uk or fill the form below.
We are Siemens trusted and approved distribution partner.
As a Value Added Reseller in Siemens’ Approved Partner network, Parmley Graham is a proven supplier of a wide range of quality products in the UK and globally.
Find out more how this will benefit you or check Siemens Configurator.
