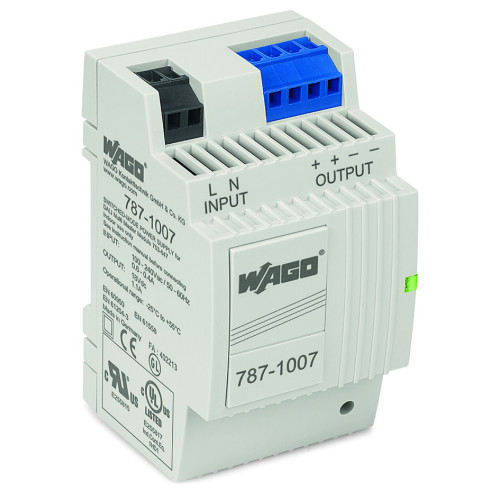

787-1007

Primary Switch Mode Power Supplies, For 753-647 Dali Multi-Master Module Dc 18 V / 1.1 A

Manufacturer's No: 787-1007     Manufacturer: WAGO
Primary Switch Mode Power Supplies, For 753-647 Dali Multi-Master Module Dc 18 V / 1.1 A

Availability Back Order

POA
  • Switched-mode power supply
  • For DALI module (753-647)
  • 1-phase
  • Output voltage: 18 VDC
  • Output current: 1.1 A
  • Conductor size: 2.50 mm²

Accessories



Product

Manufacturer Material ID -
787-1007
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85044082
Country of Origin -
DE
Minimum Order Quantity -
1
UNSPSC -
32121701

Mechanical data

Built-in height -
- Millimetre
Built-in width -
- Millimetre
Depth -
55 Millimetre
Height -
89 Millimetre
Width -
54 Millimetre

Electrical data

Power consumption -
- Voltampere
2nd secondary output voltage -
- Volt
3rd secondary output voltage -
- Volt
Max. output current 2 -
- Ampere
Max. output current 3 -
- Ampere
Nominal value output voltage 2 -
- Volt
Nominal value output voltage 3 -
- Volt
Nominal value output current 2 -
- Ampere
Nominal value output current 3 -
- Ampere
1st secondary output voltage -
18 Volt
Max. output current 1 -
1.1 Ampere
Nominal value output current 1 -
1.1 Ampere
Nominal value output voltage 1 -
18 Volt
Output voltage stabilized -
Power output -
19.8 Watt
Rated supply voltage at AC 50 Hz -
85 Volt
Rated supply voltage at AC 60 Hz -
85 Volt
Rated supply voltage at DC -
120 Volt
Voltage type of supply voltage -
AC/DC

General data

Performance level acc. EN ISO 13849-1 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Degree of protection (IP rating) -
IP20
Rail mounting possible -
Short-circuit-proof -
Stabilized -
Type of electric connection -
Spring clamp connection
Width in number of modular spacings -
3

Safety data

SIL according to IEC 61508 -
UN
