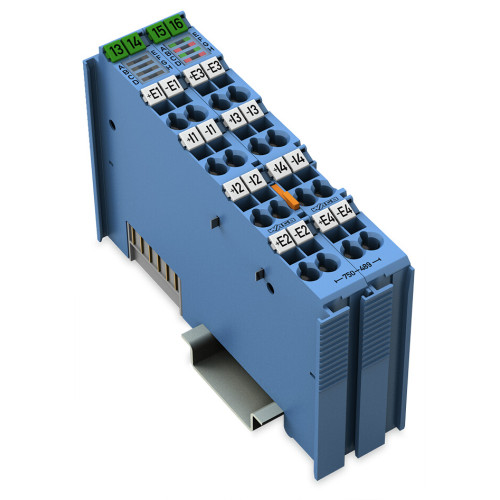

750-489

4-channel analog input, RTD/TC/Strain Gauge, 16 bits, blue

Manufacturer's No: 750-489     Manufacturer: WAGO
4-channel analog input, RTD/TC/Strain Gauge, 16 bits, blue

Availability In Stock

£855.67
  • 4-channel analog input
  • Supports RTD, TC, and Strain Gauge sensors
  • 16-bit resolution
  • Includes diagnostics feature
  • Intrinsically safe

Accessories

Miniature WSB Quick Marking System, Plain Marker Width 5 mm

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501
Price £2.82
Back Order

Group marker carrier, transparent

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 750-103
Price £0.73
Back Order

Shield clamping saddle, 12.4 mm wide, 3 ... 8 mm, silver-colored

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 790-208
Price £6.31
Back Order

Shield clamping saddle, 21.8 mm wide, 6 ... 16 mm, silver-colored

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 790-216
Price £8.26
Back Order

Shield clamping saddle, 30 mm wide, 6 ... 20 mm, silver-colored

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 790-220
Price £10.49
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-007
Price £3.96
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Blue

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-006
Price £3.96
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Red

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-005
Price £3.96
Back Order

Miniature WSB Quick Marking System, Plain Marker Width 5 mm Green

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 248-501/000-023
Price £3.96
Back Order


Product

Manufacturer Material ID -
750-489
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
UNSPSC -
32151705

Technical Specification

Resolution of the analogue outputs -
- Bit
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Appendant operation agent (Ex ia) -
Appendant operation agent (Ex ib) -
Degree of protection (IP rating) -
IP20
Depth -
67.8 Millimetre
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 3D
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible -
Height -
100 Millimetre
Input signal, configurable -
Input, thermocouple -
Number of analogue inputs -
4
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rail mounting possible -
Resolution of the analogue inputs -
0.1 Bit
Supply voltage DC -
24 Volt
System accessory -
Type of electric connection -
Spring clamp connection
Voltage type of supply voltage -
DC
Width -
24 Millimetre
