751-9301

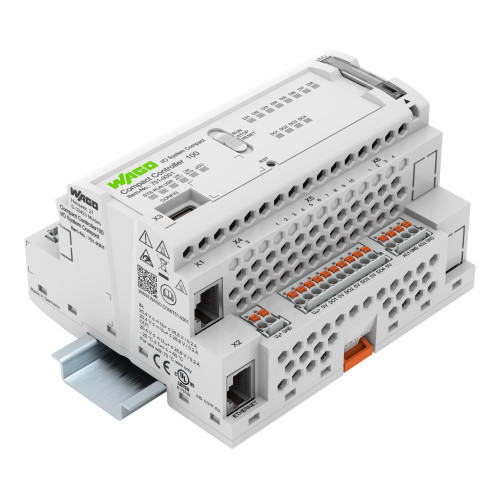

Compact Controller 100, 8DI 4DO 2AI 2AO 2NI1K/PT1K 1RS485, 2 x ETHERNET

Manufacturer's No: 751-9301     Manufacturer: WAGO
Compact Controller 100, 8DI 4DO 2AI 2AO 2NI1K/PT1K 1RS485, 2 x ETHERNET

Availability In Stock

£464.24
  • Dimensions: 12.5 inches x 8.75 inches x 0.5 inches
  • Weight: 2.5 lbs
  • Processor: Intel Core i7
  • Memory: 16 GB RAM
  • Storage: 512 GB SSD
  • Display: 15.6-inch Full HD
  • Operating System: Windows 10
  • Connectivity: Wi-Fi 6, Bluetooth 5.0
  • Ports: USB-C, HDMI, SD card reader
  • Battery Life: Up to 10 hours

Read more

  • Additional Features: Backlit keyboard, Fingerprint reader

Accessories

Female Plug, 10-Pole Pin Spacing 3.5 mm / 0.138 In Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2091-1130
Price £2.90
Back Order

Female Plug, 4-Pole Pin Spacing 3.5 mm / 0.138 In Light Gray

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2091-1124
Price £1.15
Back Order

1-conductor female connector, push-button, Push-in CAGE CLAMP, 1.5 mm, Pin spacing 3.5 mm, 2-pole, 1

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2091-1122
Price £0.66
Back Order

1-conductor female plug; Gripping plate; 1.5 mm; Pin spacing 3.5 mm; 10-pole

Once added to the cart, you can split this pack for a charge of £16.00

Product Code - 2091-1110
Price £3.09
Back Order


Product

Manufacturer Material ID -
751-9301
Net Weight -
0.19kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
UNSPSC -
43201503

Technical Specification

Additional program memory possible -
Depth -
55 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
90 Millimetre
Max. number of time switches -
0
Memory size -
32768 kiloByte (1000 Byte)
Model -
Compact
Number of analogue inputs -
2
Number of analogue outputs -
2
Number of digital inputs -
8
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Rail mounting possible -
Supply voltage DC -
24 Volt
Supporting protocol for DNP3 -
Supporting protocol for EtherNet/IP -
Supporting protocol for IEC 60870 -
Supporting protocol for IEC 61850 Ethernet -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for TCP/IP -
Type of memory -
RAM
Voltage type of supply voltage -
DC
Width -
108 Millimetre

Availability In Stock

£464.24
