7506633

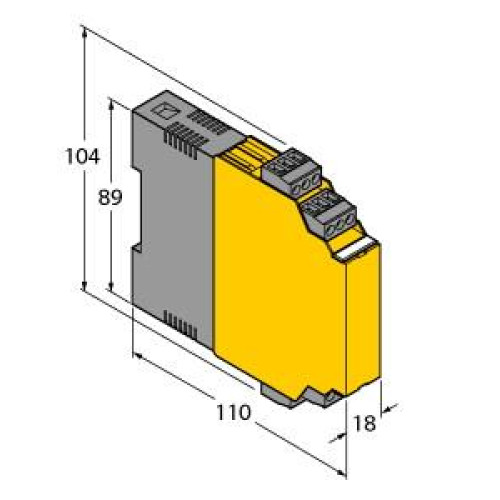

Temperature measuring amplifier - Input: Ni/Pt100 or thermo-elements or mV-input, Output : 1 x 0/4-20 mA, programmablevia PC (FDT/

Manufacturer's No: IM34-11Ex-Ci     Manufacturer: Turck Banner
Temperature measuring amplifier - Input: Ni/Pt100 or thermo-elements or mV-input, Output : 1 x 0/4-20 mA, programmablevia PC (FDT/DTM), mounting inzone 2 possible (ATEX, FM/CSA, IECEx, GOST)

Availability Back Order

£357.59
  • Input options: Ni/Pt100, thermo-elements, mV-input
  • Output: 1 x 0/4-20 mA, programmable via PC (FDT/DTM)
  • Mounting in zone 2 possible (ATEX, FM/CSA, IECEx, GOST)
  • Intrinsically safe input circuits EEx ia
  • Application area according to ATEX: II (1) GD
  • Input for Pt100/Ni100 resistors, thermoelements, millivolt signals in 2-, 3-, or 4-wire technology
  • Parameterization via PC software TM
  • Selectable line monitoring for wire-break/short-circuit (ON/OFF mode)
  • Removable terminal blocks
  • Universal operating voltage: 20-250VAC/20-125VDC

Read more

  • Galvanic isolation of input circuits to output circuits and supply voltage


Product

Manufacturer Material ID -
IM34-11Ex-Ci
Net Weight -
0.59kg

Additional Product Information

Minimum Order Quantity -
1
UNSPSC -
39122216

Technical Specification

-
Turck Banner
Turck Banner

Availability Back Order

£357.59
Sign in or Register for customer prices.

Additional Information

Data Sheets
