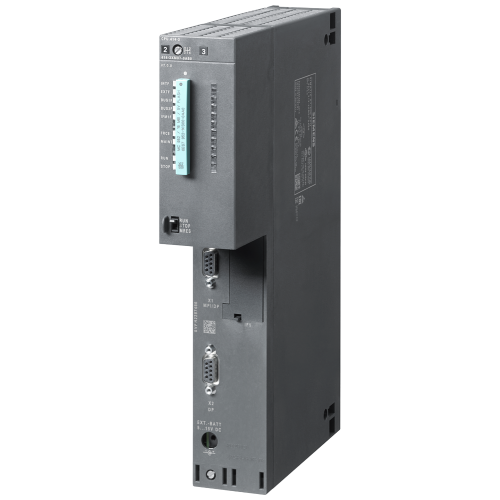

6ES74143XM070AB0

CPU 414-3, 2 x 2MB, MPI / PROFIBUS DP, DP + +1 xIF slot *

Manufacturer's No: 6ES7414-3XM07-0AB0     Manufacturer: Siemens
CPU 414-3, 2 x 2MB, MPI / PROFIBUS DP, DP + +1 xIF slot *

View 3D

Availability Back Order

£7,519.00
  • SIMATIC S7-400, CPU 414-3
  • Work memory: 4 MB (2 MB code, 2 MB data)
  • 1st interface: MPI/DP 12 Mbit/s
  • 2nd interface: PROFIBUS DP
  • 3rd interface: Plug-in IFM module


Product

Manufacturer Material ID -
6ES7414-3XM07-0AB0
Net Weight -
1.03kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens

Interfaces

Number of HW-interfaces industrial Ethernet -
-
Number of HW-interfaces RS-422 -
-
Number of interfaces PROFINET -
-
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-485 -
2
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0

General data

Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Memory size -
4000 kiloByte (1000 Byte)
Model -
Modular
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
0
Number of digital outputs -
0
Number of relay outputs -
0
Processing time (1K, binary operation) -
0.01875 Millisecond
Redundancy -
Supporting protocol for PROFIBUS -
System accessory -
Type of memory -
RAM

Electrical data

Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Supply voltage DC -
- Volt
Voltage type of supply voltage -
DC

Safety data

SIL according to IEC 61508 -
None
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G

Mechanical data

Depth -
219 Millimetre
Height -
290 Millimetre
Width -
50 Millimetre

Availability Back Order

£7,519.00
