6GK73431CX100XE0

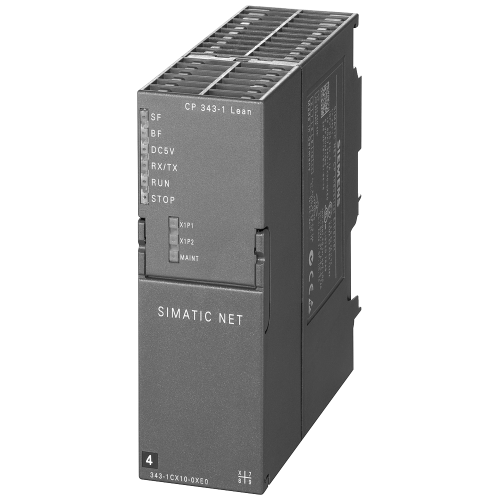

CP 343-1 LEAN Comms Processor to connect S7 to Ethernet using TCP/IP and UDP, connect up to 8 devices

Manufacturer's No: 6GK7343-1CX10-0XE0     Manufacturer: Siemens
CP 343-1 LEAN Comms Processor to connect S7 to Ethernet using TCP/IP and UDP, connect up to 8 devices

View 3D

Availability In Stock

£1,189.00
  • Communications processor CP 343-1 Lean for connecting SIMATIC S7-300 to Industrial Ethernet via TCP/IP and UDP
  • Supports Multicast, SEND/RECEIVE with and without RFC1006, Fetch/Write, S7 communication (server)
  • Integrated 2-port switch ERTEC 200 for PROFINET IO device
  • Module replacement without PG
  • SNMP diagnostics for monitoring
  • Initialization via LAN
  • 2x RJ45 connections for LAN with 10/100 Mbit/s


Product

Manufacturer Material ID -
6GK7343-1CX10-0XE0
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Number of interfaces PROFINET -
2
Performance level acc. EN ISO 13849-1 -
None
Transmission rate -
100000000 kiloBit/second
Performance level acc. to EN ISO 13849-1 -
None
SIL according to IEC 61508 -
None
Depth -
120 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height -
125 Millimetre
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Supporting protocol for other bus systems -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
Type of data transmission -
Other
Width -
40 Millimetre

Availability In Stock

£1,189.00
