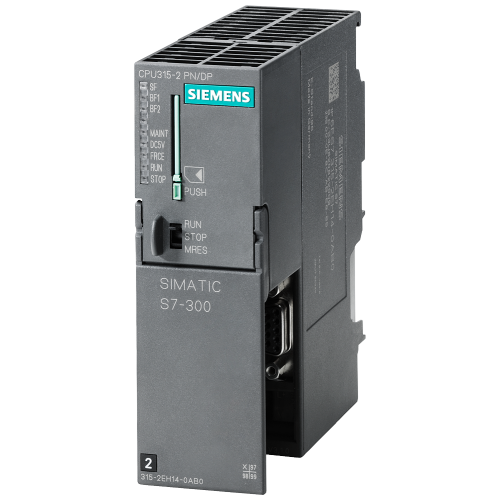

6ES73152EH140AB0

315-2PN/DP CPU, 384 KB, 1 x Interface MPI/DP, 1 x Ethernet Profinet (2 port Switch) (MMC Required)

Manufacturer's No: 6ES7315-2EH14-0AB0     Manufacturer: Siemens
315-2PN/DP CPU, 384 KB, 1 x Interface MPI/DP, 1 x Ethernet Profinet (2 port Switch) (MMC Required)

View 3D

Availability In Stock

£3,555.00
  • Model: SIMATIC S7-300 CPU 315-2 PN/DP
  • Work Memory: 384 KB
  • Interfaces:
    • 1st: MPI/DP, 12 Mbit/s
    • 2nd: Ethernet PROFINET with 2-port switch
  • Additional Requirement: Micro Memory Card

Accessories



Product

Manufacturer Material ID -
6ES7315-2EH14-0AB0
Net Weight -
0.38kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Number of interfaces PROFINET -
1
SIL according to IEC 61508 -
None
Depth -
130 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height -
125 Millimetre
Memory size -
384 kiloByte (1000 Byte)
Model -
Modular
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
0
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Processing time (1K, binary operation) -
0.05 Millisecond
Rail mounting possible -
Redundancy -
Supply voltage DC -
20.4 Volt
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET CBA -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
System accessory -
Type of memory -
RAM
Voltage type of supply voltage -
DC
Width -
40 Millimetre

Availability In Stock

£3,555.00
