6ES73136CG040AB0

313C-2DP Compact CPU, 128 KB, 16 Inputs / 16 Outputs, 2nd Interface DP-Master/Slave, 40 Pin Connector Required (MMC Required)

Manufacturer's No: 6ES7313-6CG04-0AB0     Manufacturer: Siemens
313C-2DP Compact CPU, 128 KB, 16 Inputs / 16 Outputs, 2nd Interface DP-Master/Slave, 40 Pin Connector Required (MMC Required)

View 3D

Availability Back Order

£1,927.00

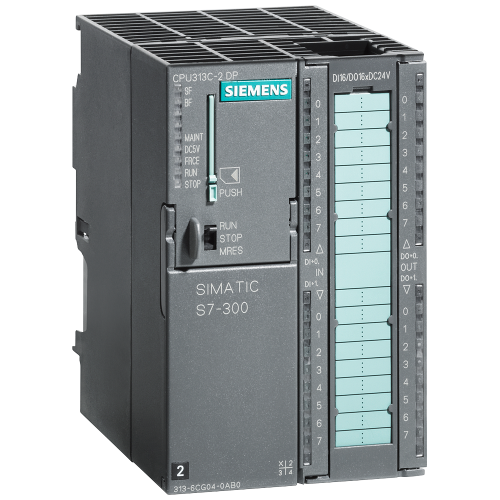

  • SIMATIC S7-300, CPU 313C-2 DP Compact CPU
  • 16 digital inputs / 16 digital outputs
  • 3 high-speed counters (30 kHz)
  • Integrated DP interface
  • Integrated power supply: 24 V DC
  • Work memory: 128 KB
  • Front connector: 1x 40-pole
  • Micro Memory Card required

Accessories



Product

Manufacturer Material ID -
6ES7313-6CG04-0AB0
Net Weight -
0.54kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Number of interfaces PROFINET -
0
SIL according to IEC 61508 -
None
Depth -
130 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height -
125 Millimetre
Memory size -
128 kiloByte (1000 Byte)
Model -
Compact
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
16
Number of digital outputs -
16
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
2
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Processing time (1K, binary operation) -
0.07 Millisecond
Rail mounting possible -
Redundancy -
Supply voltage DC -
19.2 Volt
Supporting protocol for other bus systems -
Supporting protocol for PROFIBUS -
System accessory -
Type of memory -
RAM
Voltage type of supply voltage -
DC
Width -
80 Millimetre

Availability Back Order

£1,927.00
