6ES75121CK010AB0

CPU 1512C-1 PN, 250 KB / 1 MB, 32 Inputs / 32 Outputs, 4+1 AnaIogue Inputs / 2 Analogue Outputs, 6 HSC (100 KHZ), 1 x PN (2 port S

Manufacturer's No: 6ES7512-1CK01-0AB0     Manufacturer: Siemens
CPU 1512C-1 PN, 250 KB / 1 MB, 32 Inputs / 32 Outputs, 4+1 AnaIogue Inputs / 2 Analogue Outputs, 6 HSC (100 KHZ), 1 x PN (2 port Switch), includes push-in connector

View 3D

Availability In Stock

£2,085.00

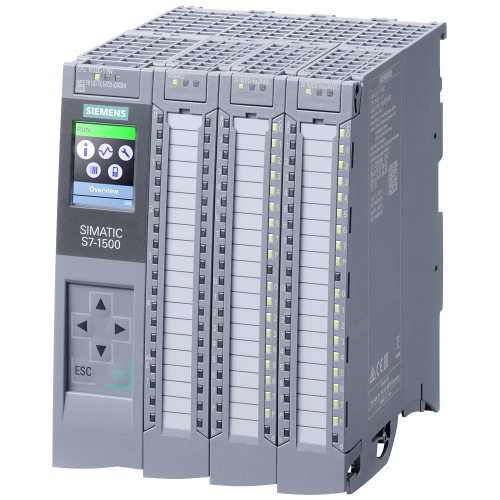

  • SIMATIC S7-1500 Compact CPU CPU 1512C-1 PN
  • Central processing unit with 250 KB working memory for program and 1 MB for data
  • 32 digital inputs and 32 digital outputs
  • 5 analog inputs and 2 analog outputs
  • 6 high-speed counters and 4 high-speed outputs for PTO/PWM/frequency output
  • Interface: PROFINET IRT with 2-port switch
  • 48 NS bit-performance
  • Front connector push-in included
  • SIMATIC memory card required

Mandatory additional product

Accessories

Spare part

Product video
Product video


Product

Manufacturer Material ID -
6ES7512-1CK01-0AB0
Net Weight -
1.55kg

Additional Product Information

Commodity Code -
85389099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
With display -
Number of interfaces PROFINET -
1
Depth -
129 Millimetre
Display -
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Height -
147 Millimetre
Memory size -
1250 kiloByte (1000 Byte)
Model -
Compact
Number of analogue inputs -
5
Number of analogue outputs -
2
Number of digital inputs -
32
Number of digital outputs -
32
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of relay outputs -
0
Processing time (1K, binary operation) -
0.048 Millisecond
Rail mounting possible -
Supply voltage DC -
19.2 Volt
Supporting protocol for MODBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
System accessory -
Type of memory -
Other
Voltage type of supply voltage -
DC
Width -
110 Millimetre

Availability In Stock

£2,085.00
