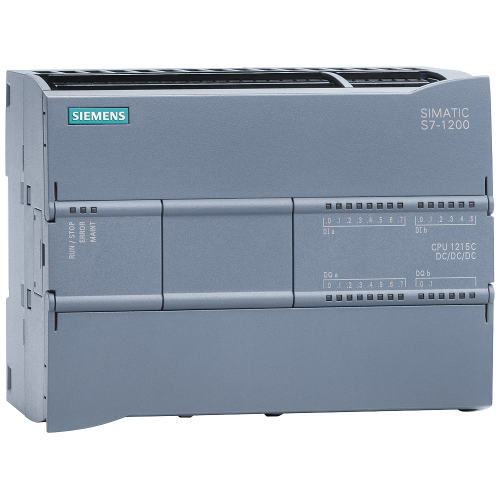

6ES72151AG400XB0

CPU 1215C - 24 VDC PSU, 14 DI (24 VDC), 10 DQ (24 VDC), 2 AI (0-10V), 2 AQ (0-20mA) 200kB, 2 port Switch

Manufacturer's No: 6ES7215-1AG40-0XB0     Manufacturer: Siemens
CPU 1215C - 24 VDC PSU, 14 DI (24 VDC), 10 DQ (24 VDC), 2 AI (0-10V), 2 AQ (0-20mA) 200kB, 2 port Switch

View 3D

Availability In Stock

£659.00
  • Model: SIMATIC S7-1200, CPU 1215C
  • Compact CPU with DC/DC/DC power supply
  • Onboard I/O:
    • 14 DI 24 V DC
    • 10 DO 24 V DC (0.5 A)
    • 2 AI 0-10 V DC
    • 2 AO 0-20 mA DC
  • 2 PROFINET ports
  • Power supply: DC 20.4-28.8 V DC
  • Program/data memory: 200 KB

Accessories

Spare part



Product

Manufacturer Material ID -
6ES7215-1AG40-0XB0
Net Weight -
0.41kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5A991X
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Number of interfaces PROFINET -
1
Front build in possible -
STATFLAG -
A
Width -
130 Millimetre
Model -
Compact
Height -
100 Millimetre
Depth -
75 Millimetre
Number of digital inputs -
14
Number of digital outputs -
10
Number of analogue inputs -
2
Number of analogue outputs -
2
Voltage type of supply voltage -
DC
Type of memory -
RAM
Memory size -
125 kiloByte (1000 Byte)
Processing time (1K, binary operation) -
0.08 Millisecond
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Supporting protocol for TCP/IP -
Supporting protocol for ASI -
Supporting protocol for PROFIBUS -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Redundancy -
Rail mounting possible -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
System accessory -
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces Wireless -
0
Wall mounting/direct mounting -
Number of relay outputs -
0
Supporting protocol for PROFINET IO -
Supply voltage DC -
20.4 Volt

Availability In Stock

£659.00
