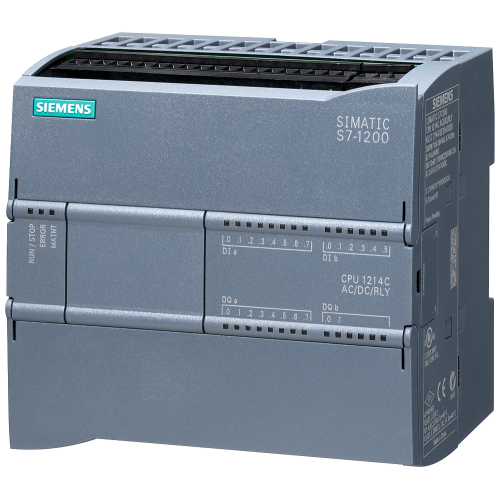

6ES72141BG400XB0

CPU 1214C - 85/265 VAC PSU, 14 DI (24 VDC), 10 Relay DQ, 2 AI (0-10V), 150kB

Manufacturer's No: 6ES7214-1BG40-0XB0     Manufacturer: Siemens
CPU 1214C - 85/265 VAC PSU, 14 DI (24 VDC), 10 Relay DQ, 2 AI (0-10V), 150kB

View 3D

Availability In Stock

£438.00
  • Model: SIMATIC S7-1200, CPU 1214C
  • Compact CPU with onboard I/O
  • Inputs: 14 digital inputs at 24 V DC
  • Outputs: 10 relay outputs at 2 A
  • Analog Inputs: 2 channels at 0-10 V DC
  • Power Supply: AC 85-264 V at 47-63 Hz
  • Program/Data Memory: 150 KB

Accessories

Spare part



Product

Manufacturer Material ID -
6ES7214-1BG40-0XB0
Net Weight -
0.45kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Max. number of time switches -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage DC -
- Volt
SIL according to IEC 61508 -
UN
Number of interfaces PROFINET -
1
Front build in possible -
STATFLAG -
A
Width -
110 Millimetre
Model -
Compact
Height -
100 Millimetre
Depth -
75 Millimetre
Number of digital inputs -
14
Number of digital outputs -
10
Number of analogue inputs -
2
Number of analogue outputs -
0
Voltage type of supply voltage -
AC
Type of memory -
RAM
Memory size -
100 kiloByte (1000 Byte)
Processing time (1K, binary operation) -
0.08 Millisecond
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Supporting protocol for TCP/IP -
Supporting protocol for ASI -
Supporting protocol for PROFIBUS -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Rail mounting possible -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
System accessory -
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces Wireless -
0
Wall mounting/direct mounting -
Number of relay outputs -
10
Supporting protocol for PROFINET IO -
Supply voltage AC 50 Hz -
85 Volt
Supply voltage AC 60 Hz -
85 Volt
