6ED10521FB080BA2

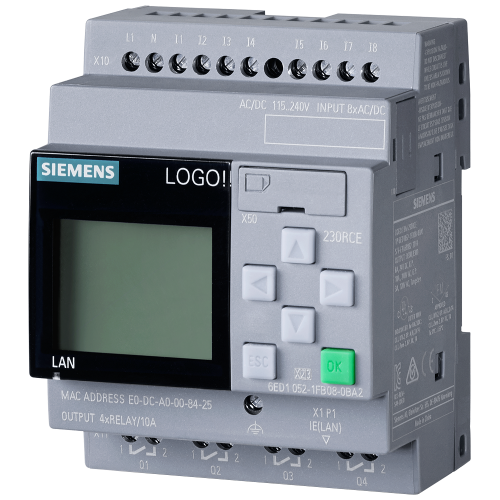

LOGO! 230RCE - 8 digital Inputs 110/230Vac / 4 digital outputs Relay (10A) (V8.4)

Manufacturer's No: 6ED1052-1FB08-0BA2     Manufacturer: Siemens
LOGO! 230RCE - 8 digital Inputs 110/230Vac / 4 digital outputs Relay (10A) (V8.4)

Availability In Stock

£138.00
  • Model: LOGO! 230RCE
  • Logic module with display
  • Power supply / I/O: 115 V/230 V with relay
  • 8 digital inputs / 4 digital outputs
  • Memory capacity: 400 blocks
  • Modularly expandable
  • Features Ethernet connectivity
  • Integrated web server for data logging
  • Supports user-defined web pages
  • Compatible with standard microSD card for LOGO! Soft Comfort V8.4 or higher

Read more

  • Supports execution of older projects
  • Cloud connection capability
  • MQTT support in all LOGO! 8.4 basic units
Product video
Product video
Product video
Product video
Product video
Product video
Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ED1052-1FB08-0BA2
Net Weight -
0.27kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: EAR99H
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

Basic device -
Degree of protection (IP rating) -
IP20
Depth -
60 Millimetre
Display -
Expandable -
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Front built-in possible -
Height -
90 Millimetre
Number of analogue inputs -
0
Number of analogue outputs -
0
Number of digital inputs -
8
Number of digital outputs -
4
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rail mounting possible -
Supply voltage AC 50 Hz -
85 Volt
Supply voltage AC 60 Hz -
85 Volt
Supply voltage DC -
100 Volt
Supporting protocol for LON -
Supporting protocol for TCP/IP -
Switching current -
10 Ampere
Voltage type of supply voltage -
AC/DC
Wall mounting/direct mounting -
Width -
71.5 Millimetre
With relay output -
With timer -

Availability In Stock

£138.00
