6ES71435BF000BA0

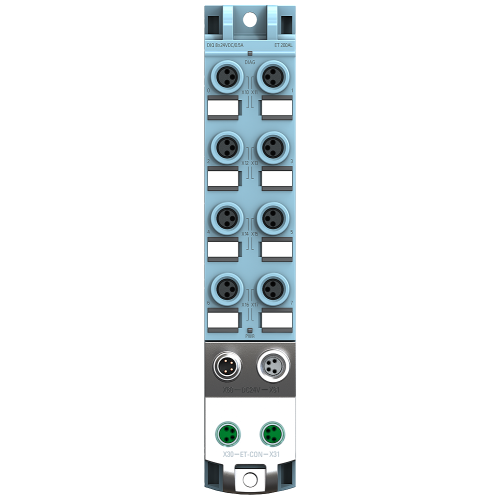

SIMATIC ET 200AL DIQ 4+DQ 4x24VDC/0.5A 8x M8

Manufacturer's No: 6ES7143-5BF00-0BA0     Manufacturer: Siemens
SIMATIC ET 200AL DIQ 4+DQ 4x24VDC/0.5A 8x M8

View 3D

Availability Back Order

£114.00
  • SIMATIC ET 200AL
  • 4 digital inputs and 4 digital outputs
  • Voltage: 24 V DC, Current: 0.5 A
  • 8XM8 connectors
  • IP67 protection rating

Accessories

AS-i accessory M8 cover for IP67 modules

Product Code - 3RK19011PN00
Price £1.02
Back Order
Product video
Product video
Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ES7143-5BF00-0BA0
Net Weight -
0.17kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
1.2 Millisecond
Degree of protection (IP) -
IP65/IP67
Number of interfaces PROFINET -
0
Front build in possible -
Type of electric connection -
Other
Explosion safety category for gas -
None
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP65/IP67
Depth -
40 Millimetre
Digital inputs configurable -
Digital outputs configurable -
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
Height -
159 Millimetre
Input current at signal 1 -
3.2 Milliampere
Number of digital inputs -
4
Number of digital outputs -
8
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Output current -
0.5 Ampere
Permitted voltage at input -
-3 Volt
Permitted voltage at output -
20.4 Volt
Rail mounting possible -
Short-circuit protection, outputs available -
Supply voltage DC -
20.4 Volt
System accessory -
Time delay at signal change -
1.2 Millisecond
Type of digital output -
Transistor
Type of output voltage -
DC
Type of voltage (input voltage) -
DC
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
30 Millimetre

Availability Back Order

£114.00
