6ES75101DK030AB0

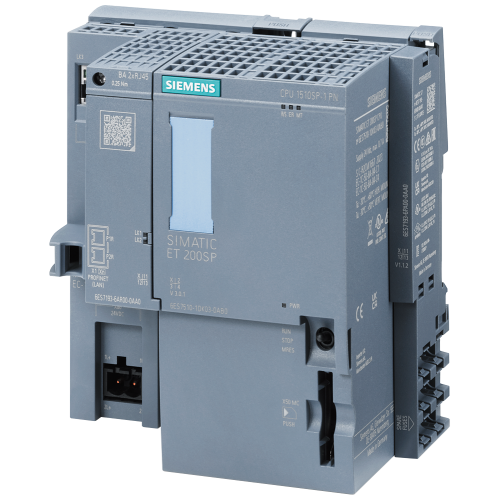

CPU 1510SP-1 PN, 200 kB / 1 MB, 1xPN interface with 3 ports (1xRJ45, 2x via BusAdapter (RJ45 or FC)), requires MMC

Manufacturer's No: 6ES7510-1DK03-0AB0     Manufacturer: Siemens

Availability In Stock

£741.00
  • SIMATIC DP, CPU 1510SP-1 PN for ET 200SP
  • Work memory: 200 KB for program, 1 MB for data
  • 1st interface: PROFINET IRT with 3-port switch
  • 25 ns bit performance
  • SIMATIC Memory Card required
  • BusAdapter required for port 1 and 2

Mandatory additional product

Accessories

Product video
Product video
Product video
Product video


Product

Manufacturer Material ID -
6ES7510-1DK03-0AB0
Net Weight -
0.39kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43201503

Technical Specification

Bus coupler for modular station connection available -
Degree of protection (IP rating) -
IP20
Depth -
75 Millimetre
Explosion safety category for dust -
None
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Fieldbus connection over separate bus coupler possible -
Height -
117 Millimetre
Input voltage at DC -
19.2 Volt
Max. input current DC -
0.7 Ampere
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of slots -
80
Rail mounting possible -
Supporting protocol for ASI -
Supporting protocol for MODBUS -
Supporting protocol for PROFIBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for TCP/IP -
System accessory -
Type of voltage (input voltage) -
DC
Wall mounting/direct mounting -
Width -
100 Millimetre
With optical interface -
With pluggable modules, analogue I/O -
With pluggable modules, central modules -
With pluggable modules, communication modules -
With pluggable modules, digital I/O -
With pluggable modules, function and technology modules -
With pluggable modules, others -
