6GK75436WX000XE0

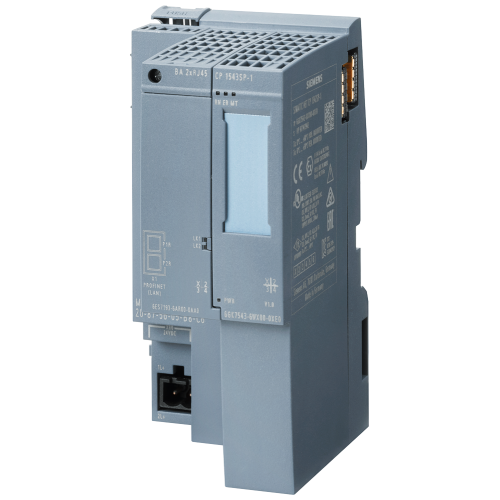

Communications processor CP 1543SP-1, connection SIMATIC S7-ET 200SP to IE

Manufacturer's No: 6GK7543-6WX00-0XE0     Manufacturer: Siemens
Communications processor CP 1543SP-1, connection SIMATIC S7-ET 200SP to IE

Availability In Stock

£826.00
  • Communications processor CP 1543SP-1 designed for connecting SIMATIC S7-ET 200SP to Industrial Ethernet
  • Supports Security features such as firewall and VPN
  • Open IE communication protocols including TCP/IP, ISO-on-TCP, and UDP
  • Features PG/OP, S7 routing, IP broadcast/multicast, SNMPV1/V3, DHCP, secure email, IPV4/IPV6
  • Supports SINEMA Remote Connect with autoconfiguration
  • Time-of-day synchronization via NTP
  • Access to CPU's web server
  • Requires bus adapter for operation

Accessories



Product

Manufacturer Material ID -
6GK7543-6WX00-0XE0
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
UNSPSC -
32151701

Technical Specification

-
Siemens

General data

Category according to EN 954-1 -
UN
Transmission rate -
100000 kiloBit/second
Performance level acc. EN ISO 13849-1 -
None
Type of data transmission -
Other

Interfaces

Number of interfaces PROFINET -
0
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0

Safety data

SIL according to IEC 61508 -
None
Explosion safety category for dust -
None
Explosion safety category for gas -
None

Mechanical data

Depth -
74 Millimetre
Height -
117 Millimetre
Width -
60 Millimetre

Availability In Stock

£826.00
