6ES71366RA000BF0

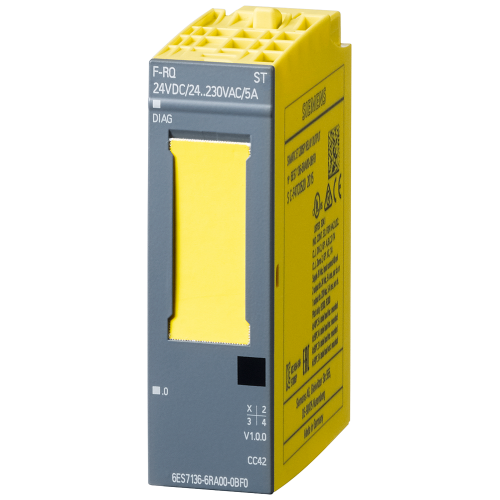

ET200SP 1 F RQ - 1 x Safe Relay Output (2 NO), 5A, Standard, F0 BU required

Manufacturer's No: 6ES7136-6RA00-0BF0     Manufacturer: Siemens
ET200SP 1 F RQ - 1 x Safe Relay Output (2 NO), 5A, Standard, F0 BU required

Availability In Stock

£118.00
  • Electronics module for ET200SP
  • 1 relay output (2 NO)
  • Overall width: 20 mm
  • Summation output current: 5 A
  • Load voltage: 24 V DC and 24-230 V AC
  • Can be used up to PL E (ISO 13849-1:2008) / SIL 3 (IEC 61508:2010)
  • Control via F-DQ (e.g. 6ES7136-6DB00-0CA0)

Accessories

Spare part

Product video


Product

Manufacturer Material ID -
6ES7136-6RA00-0BF0
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
-
Siemens
Input current at signal 1 -
- Milliampere
Time delay at signal exchange -
- Millisecond
Type of voltage (input voltage) -
UN
Output current -
- Ampere
Explosion safety category for gas -
UN
Category according to EN 954-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Permitted voltage at input -
- Volt
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Performance level acc. EN ISO 13849-1 -
Level e
Width -
20 Millimetre
Height -
73 Millimetre
Depth -
58 Millimetre
Suitable for safety functions -
Number of digital inputs -
0
Number of digital outputs -
1
Voltage type of supply voltage -
DC
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Type of digital output -
Relay
Type of electric connection -
Plug-in connection
Rail mounting possible -
Explosion safety category for dust -
None
Fieldbus connection over separate bus coupler possible -
System accessory -
Degree of protection (IP rating) -
IP20
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces Wireless -
0
Performance level acc. to EN ISO 13849-1 -
Level e
Supply voltage DC -
20.4 Volt
Permitted voltage at output -
20.4 Volt
Type of output voltage -
AC/DC
Digital outputs configurable -
SIL according to IEC 61508 -
3
