6ES71366PA000BC0

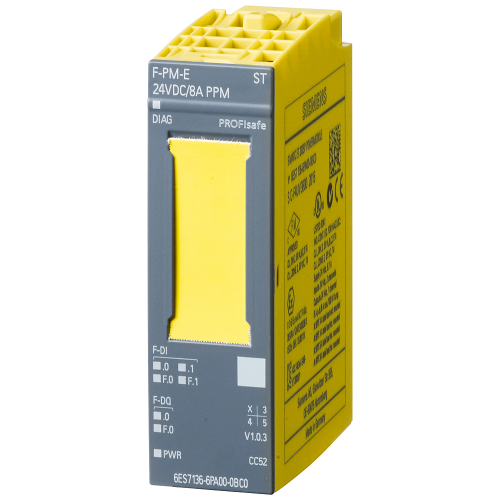

ET200SP F- PM - Safe Power module 24VDC / 8A, C0 BU required

Manufacturer's No: 6ES7136-6PA00-0BC0     Manufacturer: Siemens
ET200SP F- PM - Safe Power module 24VDC / 8A, C0 BU required

View 3D

Availability In Stock

£304.00
  • Safe shutdown of digital outputs (DQ and F-DQ) up to PL D/SIL2 or PL E/SIL3
  • Designed for ET 200SP system
  • 2 safe digital inputs and 1 safe digital output
  • Operates at 24 V DC voltage

Accessories

Spare part

Product video


Product

Manufacturer Material ID -
6ES7136-6PA00-0BC0
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Type of electric connection -
UN
Degree of protection (IP) -
UN
Category according to EN 954-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Voltage type of supply voltage -
DC
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Supporting protocol for PROFIBUS -
With potential separation -
Rail mounting possible -
Bus diagnosis possible -
With power supply module -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Suitable as segment module -
System accessory -
Number of interfaces PROFINET -
0
Number of HW-interfaces Wireless -
0
Front build in possible -
Rack-assembly possible -
Performance level acc. EN ISO 13849-1 -
Level e
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supply voltage DC -
20.4 Volt
SIL according to IEC 61508 -
3
Width -
20 Millimetre
Height -
73 Millimetre
Depth -
58 Millimetre
Suitable for safety functions -
Type of voltage (input voltage) -
DC
Output voltage at DC -
20.4 Volt
Input voltage at DC -
20.4 Volt
Type of output voltage -
DC

Availability In Stock

£304.00
