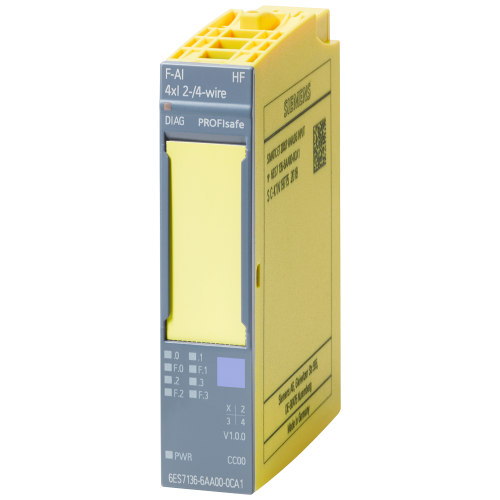

6ES71366AA000CA1

ET200SP 4 F - AI 4 x I (0)4..20mA HF FailsafeE Aanalogue Inputs up to PL E (ISO 13849) up to SIL 3 (IEC 61508)

Manufacturer's No: 6ES7136-6AA00-0CA1     Manufacturer: Siemens
ET200SP 4 F - AI 4 x I (0)4..20mA HF FailsafeE Aanalogue Inputs up to PL E (ISO 13849) up to SIL 3 (IEC 61508)

View 3D

Availability In Stock

£584.00
  • SIMATIC DP electronic module ET 200SP
  • F-AI 4xI0(4)..20 mA HF fail-safe analog inputs
  • Supports up to PL e (ISO 13849) and SIL 3 (IEC 61508) safety levels

Mandatory additional product

SIMATIC ET 200SP BU type A0 BU15-P16+A10+2B PU 10

Product Code - 6ES71936BP202BA0
Price £22.00
Back Order

SIMATIC ET 200SP BU type A0 BU15-P16+A10+2D PU 10

Product Code - 6ES71936BP202DA0
Price £34.00
Back Order

Spare part

Product video


Product

Manufacturer Material ID -
6ES7136-6AA00-0CA1
Net Weight -
0.06kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Resolution of the analogue outputs -
- Bit
Category according to EN 954-1 -
UN
Number of interfaces PROFINET -
-
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Performance level acc. EN ISO 13849-1 -
Level e
Width -
15 Millimetre
Height -
73 Millimetre
Depth -
58 Millimetre
Suitable for safety functions -
Number of analogue inputs -
4
Number of analogue outputs -
0
Voltage type of supply voltage -
DC
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces other -
0
Input, current -
Input signal, configurable -
Resolution of the analogue inputs -
16 Bit
Type of electric connection -
Plug-in connection
Rail mounting possible -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Fieldbus connection over separate bus coupler possible -
System accessory -
Degree of protection (IP rating) -
IP20
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces Wireless -
0
Rack-assembly possible -
Performance level acc. to EN ISO 13849-1 -
Level e
Supply voltage DC -
19.2 Volt
Analogue inputs configurable -
SIL according to IEC 61508 -
3

Availability In Stock

£584.00
