6ES71346TD000CA1

ET200SP AI 4xI 2-wire 4 to 20mA HART, High Feature Fits To Bu-Type A0, A1, Color Code CC03, Channel Diagnosis, 16Bit, +/-0.3%

Manufacturer's No: 6ES7134-6TD00-0CA1     Manufacturer: Siemens
ET200SP AI 4xI 2-wire 4 to 20mA HART, High Feature Fits To Bu-Type A0, A1, Color Code CC03, Channel Diagnosis, 16Bit, +/-0.3%

Availability In Stock

£595.00

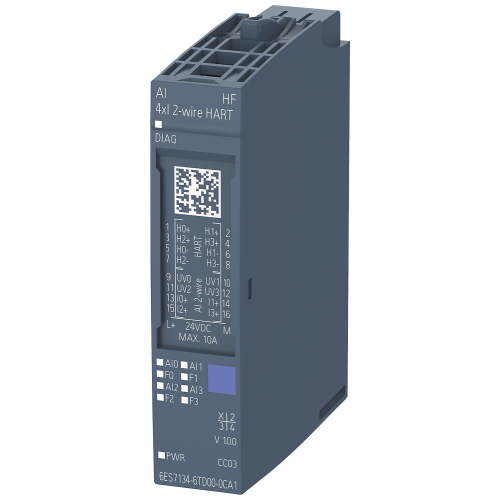

  • SIMATIC ET 200SP analog HART input module
  • AI 4XI 2-wire HART High Feature
  • Suitable for BU type A0, A1
  • Color code: CC03
  • Channel diagnostics included
  • 16-bit resolution
  • Accuracy: +/-0.3%

Mandatory additional product

SIMATIC ET 200SP BU type A0 BU15-P16+A10+2B PU 10

Product Code - 6ES71936BP202BA0
Price £22.00
Back Order

SIMATIC ET 200SP BU type A0 BU15-P16+A10+2D PU 10

Product Code - 6ES71936BP202DA0
Price £34.00
Back Order

Spare part

Product video
Product video


Product

Manufacturer Material ID -
6ES7134-6TD00-0CA1
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
Siemens
Resolution of the analogue outputs -
- Bit
Type of electric connection -
UN
Explosion safety category for gas -
UN
Explosion safety category for dust -
UN
Category according to EN 954-1 -
UN
Number of interfaces PROFINET -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Front build in possible -
Analogue inputs configurable -
Degree of protection (IP rating) -
IP20
Depth -
58 Millimetre
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
Height -
73 Millimetre
Input signal, configurable -
Input, current -
Number of analogue inputs -
4
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rack-assembly possible -
Rail mounting possible -
Resolution of the analogue inputs -
16 Bit
Supply voltage DC -
19.2 Volt
System accessory -
Voltage type of supply voltage -
DC
Width -
15 Millimetre
