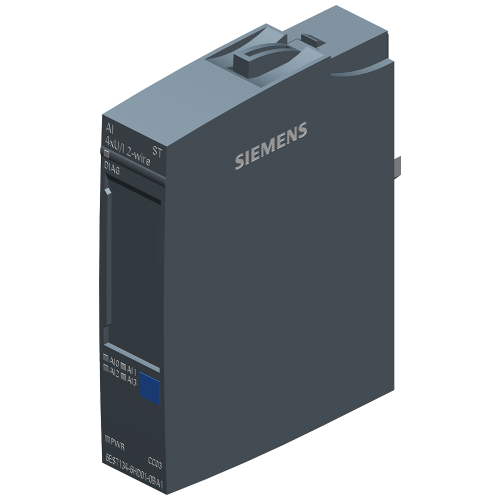

6ES71346HD010BA1

ET200SP 4AI ST - 4 Analogue Inputs, Voltage / Current 2-wire Standard, CC03, A0 or A1 BU required

Manufacturer's No: 6ES7134-6HD01-0BA1     Manufacturer: Siemens
ET200SP 4AI ST - 4 Analogue Inputs, Voltage / Current 2-wire Standard, CC03, A0 or A1 BU required

View 3D

Availability In Stock

£183.00
  • Product: SIMATIC ET 200SP Analog Input Module
  • Type: AI 4XU/I 2-Wire Standard
  • Number of Channels: 4
  • Suitable for BU-Type A0, A1
  • Color Code: CC03
  • Module Diagnosis Feature
  • Resolution: 16-bit
  • Accuracy: ±0.3%

Mandatory additional product

SIMATIC ET 200SP BU type A0 BU15-P16+A10+2B PU 10

Product Code - 6ES71936BP202BA0
Price £22.00
Back Order

SIMATIC ET 200SP BU type A0 BU15-P16+A10+2D PU 10

Product Code - 6ES71936BP202DA0
Price £34.00
Back Order

Spare part

Product video
Product video


Product

Manufacturer Material ID -
6ES7134-6HD01-0BA1
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Resolution of the analogue outputs -
- Bit
Degree of protection (IP) -
UN
Category according to EN 954-1 -
UN
Number of interfaces PROFINET -
-
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Front build in possible -
Type of electric connection -
Plug-in connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Analogue inputs configurable -
Degree of protection (IP rating) -
IP20
Depth -
58 Millimetre
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
Height -
73 Millimetre
Input signal, configurable -
Input, current -
Input, voltage -
Number of analogue inputs -
4
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rack-assembly possible -
Rail mounting possible -
Resolution of the analogue inputs -
16 Bit
Supply voltage DC -
19.2 Volt
System accessory -
Voltage type of supply voltage -
DC
Width -
15 Millimetre
