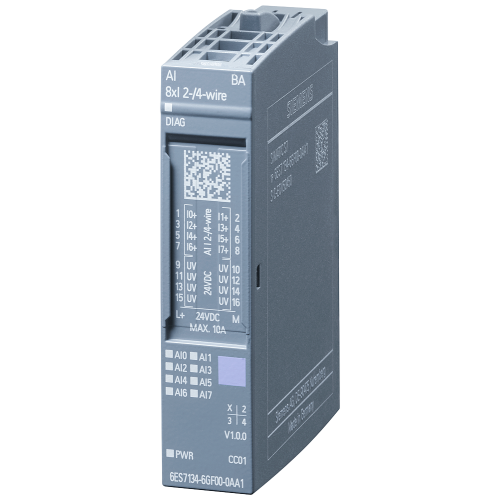

6ES71346GF000AA1

ET200SP 8AI, Current, 2-/4-Wire, Basic, Fits To Bu-Type A0, A1, Color Code CC01, Module Diagnosis, 16Bit

Manufacturer's No: 6ES7134-6GF00-0AA1     Manufacturer: Siemens
ET200SP 8AI, Current, 2-/4-Wire, Basic, Fits To Bu-Type A0, A1, Color Code CC01, Module Diagnosis, 16Bit

View 3D

Availability In Stock

£243.00
  • SIMATIC ET 200SP Analog input module
  • AI 8XI 2-/4-wire Basic
  • Suitable for BU type A0, A1
  • Color code: CC01
  • Module diagnostics included
  • 16-bit resolution

Mandatory additional product

SIMATIC ET 200SP BU type A0 BU15-P16+A10+2B PU 10

Product Code - 6ES71936BP202BA0
Price £22.00
Back Order

SIMATIC ET 200SP BU type A0 BU15-P16+A10+2D PU 10

Product Code - 6ES71936BP202DA0
Price £34.00
Back Order

Accessories

Spare part

Product video
Product video


Product

Manufacturer Material ID -
6ES7134-6GF00-0AA1
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
Siemens
Resolution of the analogue outputs -
- Bit
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP20
Number of interfaces PROFINET -
0
Front build in possible -
Type of electric connection -
Plug-in connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Number of HW-interfaces PROFINET -
0
Analogue inputs configurable -
Degree of protection (IP rating) -
IP20
Depth -
58 Millimetre
Fieldbus connection over separate bus coupler possible -
Height -
73 Millimetre
Input signal, configurable -
Input, current -
Number of analogue inputs -
8
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rail mounting possible -
Resolution of the analogue inputs -
16 Bit
Supply voltage DC -
19.2 Volt
System accessory -
Voltage type of supply voltage -
DC
Width -
15 Millimetre

Availability In Stock

£243.00
