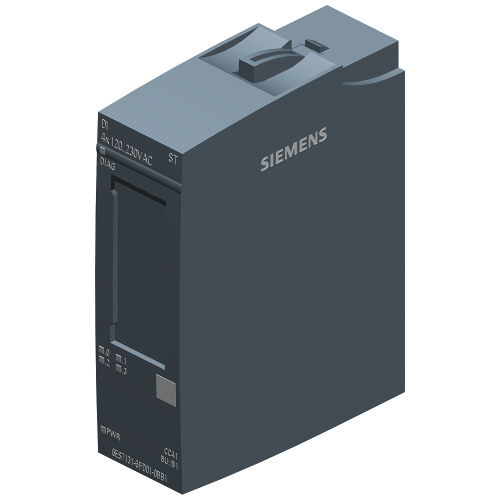

6ES71316FD010BB1

ET200SP 4DI ST - 4 Inputs, 120-230VAC, Standard, colour code CC41, B1 BU required

Manufacturer's No: 6ES7131-6FD01-0BB1     Manufacturer: Siemens
ET200SP 4DI ST - 4 Inputs, 120-230VAC, Standard, colour code CC41, B1 BU required

View 3D

Availability In Stock

£66.00
  • SIMATIC ET 200SP Digital input module
  • 4 channels
  • Input voltage: 120-230V AC
  • Standard type 3 (IEC 61131)
  • Fits BU-type B1
  • Colour Code: CC41
  • Module diagnostics included

Mandatory additional product

SIMATIC ET 200SP BU type B1 BU20-P12+A0+4B PU 10

Product Code - 6ES71936BP202BB1
Price £23.00
Back Order

Spare part

Product video
Presentation video
Product video


Product

Manufacturer Material ID -
6ES7131-6FD01-0BB1
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Output current -
- Ampere
Degree of protection (IP) -
UN
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage DC -
- Volt
Permitted voltage at output -
- Volt
Type of output voltage -
UN
SIL according to IEC 61508 -
UN
Time delay at signal exchange -
1.5 Millisecond
Number of interfaces PROFINET -
0
Front build in possible -
Type of voltage (input voltage) -
AC
Type of electric connection -
Plug-in connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP20
Depth -
58 Millimetre
Digital inputs configurable -
Fieldbus connection over separate bus coupler possible -
Height -
73 Millimetre
Input current at signal 1 -
10.8 Milliampere
Number of digital inputs -
4
Number of digital outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Permitted voltage at input -
0 Volt
Rail mounting possible -
Supply voltage AC 50 Hz -
264 Volt
Supply voltage AC 60 Hz -
264 Volt
System accessory -
Time delay at signal change -
1.5 Millisecond
Type of digital output -
None
Voltage type of supply voltage -
AC
Width -
20 Millimetre

Availability In Stock

£66.00
