6ES71555AA010AB0

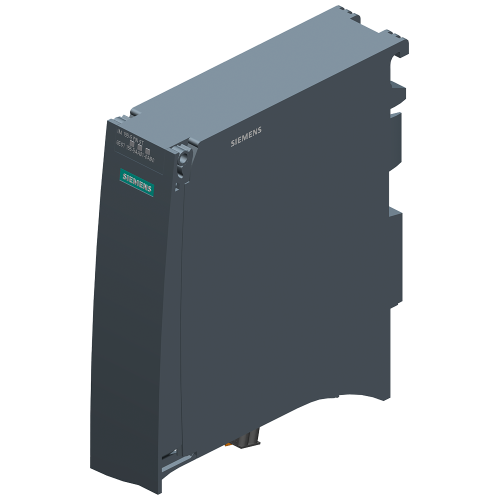

PROFINET IO header module (max 30 modules) - IM 155-5 PN Standard

Manufacturer's No: 6ES7155-5AA01-0AB0     Manufacturer: Siemens
PROFINET IO header module (max 30 modules) - IM 155-5 PN Standard

View 3D

Availability In Stock

£440.00
  • PROFINET IO-Device Interface Module IM 155-5 PN ST for SIMATIC ET 200MP
  • Supports up to 12 IO-modules without additional power supply
  • Supports up to 30 IO-modules with additional power supply in shared device configuration
  • Features MRP (Media Redundancy Protocol) and IRT (Isochronous Real-Time) with a minimum of 0.25ms
  • Supports isochronicity firmware update and I&M0...3
  • FSU (Fast Startup) with 500ms

Mandatory additional product

Accessories

Spare part

Product video
Product video


Product

Manufacturer Material ID -
6ES7155-5AA01-0AB0
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85176200
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151701

Technical Specification

-
Siemens
-
Siemens
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
SIL according to IEC 61508 -
UN
Degree of protection (IP) -
IP20
Front build in possible -
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Degree of protection (IP rating) -
IP20
Depth -
129 Millimetre
Height -
147 Millimetre
Rail mounting possible -
Supply voltage DC -
19.2 Volt
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
System accessory -
Voltage type of supply voltage -
DC
Width -
35 Millimetre
With potential separation -

Availability In Stock

£440.00
