6ES71387FA000AB0

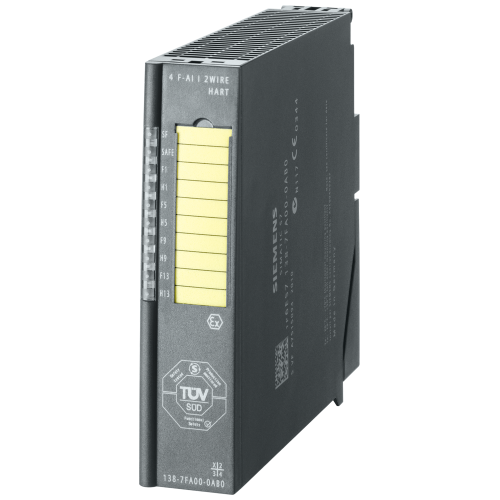

SIMATIC ET 200iSP 4F-AI I Ex HART

Manufacturer's No: 6ES7138-7FA00-0AB0     Manufacturer: Siemens
SIMATIC ET 200iSP 4F-AI I Ex HART

View 3D

Availability In Stock

£1,235.00
  • Fail-safe electronics module for ET200iSP
  • 4 analog input channels for HART 2-wire measuring transducers
  • Supports HART protocol Version 7.0
  • Safety ratings: up to Category 4 (EN954-1), SIL3 (IEC61508), PLE (ISO13849)
  • Explosion protection: Ex ib (ia Ga) IIC T4 Gb, Ex ib [ia IIIC Da] IIC T4 Gb, Ex ib [ia] I Mb
Product video
Product video


Product

Manufacturer Material ID -
6ES7138-7FA00-0AB0
Net Weight -
0.37kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
Resolution of the analogue outputs -
- Bit
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Degree of protection (NEMA) -
UN
Degree of protection (IP) -
IP30
Category according to EN 954-1 -
4
Number of interfaces PROFINET -
0
Front build in possible -
Performance level acc. EN ISO 13849-1 -
Level e
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 2G
Explosion safety category for dust -
ATEX dust-ex-protection, Cat. 2D
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to IEC 61508 -
3
Analogue inputs configurable -
Appendant operation agent (Ex ia) -
Appendant operation agent (Ex ib) -
Degree of protection (IP rating) -
IP30
Depth -
136.5 Millimetre
Fieldbus connection over separate bus coupler possible -
Front built-in possible -
Height -
129 Millimetre
Input signal, configurable -
Input, current -
Number of analogue inputs -
4
Number of analogue outputs -
0
Number of HW-interfaces industrial Ethernet -
0
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Rail mounting possible -
Resolution of the analogue inputs -
16 Bit
Suitable for safety functions -
Supply voltage DC -
19.2 Volt
Supporting protocol for PROFIsafe -
System accessory -
Voltage type of supply voltage -
DC
Wall mounting/direct mounting -
Width -
30 Millimetre
