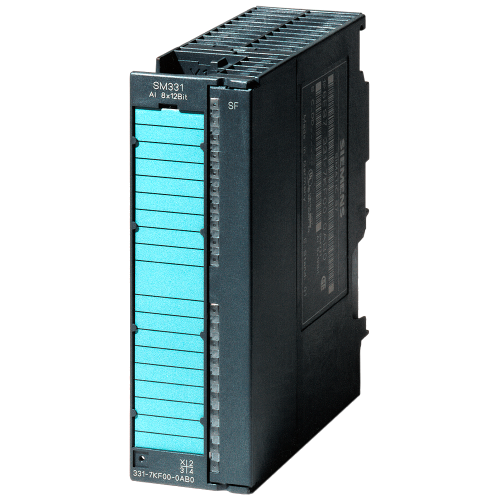

6ES73317KF020AB0

SM 331, 8 analogue inputs, 9/12/14 bit resolution., 20 Pin Connector Required

Manufacturer's No: 6ES7331-7KF02-0AB0     Manufacturer: Siemens
SM 331, 8 analogue inputs, 9/12/14 bit resolution., 20 Pin Connector Required

View 3D

Availability In Stock

£1,129.00
  • SIMATIC S7-300 Analog input module SM 331
  • Isolated module with 8 analog inputs
  • Resolution options: 9/12/14 bits
  • Compatible with voltage, current, thermocouple, and resistor inputs
  • Features alarm and diagnostics functions
  • 20-pole design for easy removal and insertion with active backplane bus

Accessories



Product

Manufacturer Material ID -
6ES7331-7KF02-0AB0
Net Weight -
0.29kg

Additional Product Information

Commodity Code -
85389091
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: N
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
32151705

Technical Specification

-
Siemens
-
Siemens
Resolution of the analogue outputs -
- Bit
Category according to EN 954-1 -
UN
Performance level acc. EN ISO 13849-1 -
UN
SIL according to IEC 61508 -
UN
Type of electric connection -
Screw-/spring clamp connection
Explosion safety category for gas -
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust -
None
Analogue inputs configurable -
Depth -
117 Millimetre
Height -
125 Millimetre
Input signal, configurable -
Input, current -
Input, resistance thermometer -
Input, resistor -
Input, thermocouple -
Input, voltage -
Number of analogue inputs -
8
Number of analogue outputs -
0
Resolution of the analogue inputs -
15 Bit
Width -
40 Millimetre
