6AV66461BB180AA0

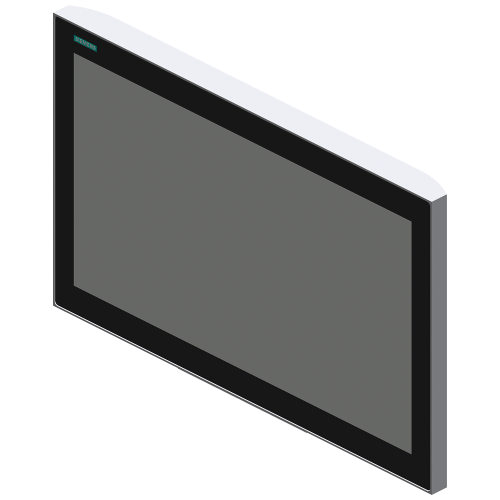

SIMATIC ITC1900 V3 PRO, Industrial Thin Client, 19" widescreen TFT display, capacitive Touch sensor, supporting foot mounting

Manufacturer's No: 6AV6646-1BB18-0AA0     Manufacturer: Siemens
SIMATIC ITC1900 V3 PRO, Industrial Thin Client, 19" widescreen TFT display, capacitive Touch sensor, supporting foot mounting

View 3D

Availability Back Order

POA
  • Model: SIMATIC ITC1900 V3 PRO
  • Industrial Thin Client with 19" widescreen TFT display
  • Capacitive touch sensor for user interaction
  • Supported protocols: RDP, VNC, Smart Server, HTML5
  • Standard design with foot mounting support

Accessories



Product

Manufacturer Material ID -
6AV6646-1BB18-0AA0
Net Weight -
8.80kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5A992
Minimum Order Quantity -
1
UNSPSC -
32151705

Technical Specification

-
Siemens
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Degree of protection (NEMA) -
UN
Built-in depth -
101 Millimetre
Operation temperature -
0 Degrees celsius
Number of interfaces PROFINET -
2
STATFLAG -
B
Number of HW-interfaces Wireless -
0
Preinstalled operating system -
None
Type of display -
TFT
Degree of protection (IP), front side -
IP65
Height of the front -
293 Millimetre
Max. main memory -
2000 Megabyte
Mounting type, table foot -
Number of buttons with LED -
0
Number of free AGP-slots -
0
Number of free ISA-slots -
0
Number of free PCI-slots -
0
Number of free PCMCIA-slots -
0
Number of function buttons -
0
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces PS2 -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces SCSI -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
4
Number of pixels, horizontal -
1366
Number of pixels, vertical -
768
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Recess depth -
101 Millimetre
Screen diagonal -
18.5 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for other bus systems -
Voltage type of supply voltage -
DC
Width of the front -
462 Millimetre
With hard disc -
With touch screen -
