6AV21283KB060AX1

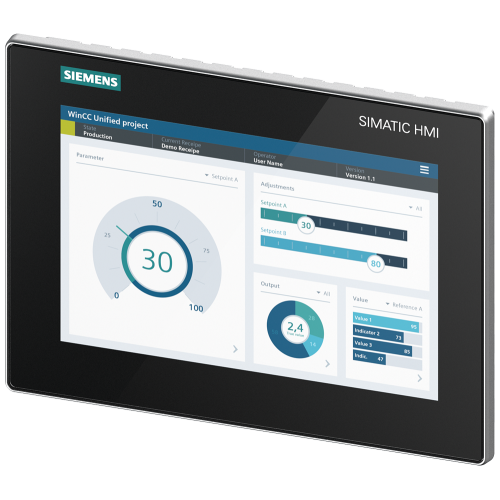

SIMATIC HMI MTP1000 Unified Comfort

Manufacturer's No: 6AV2128-3KB06-0AX1     Manufacturer: Siemens
SIMATIC HMI MTP1000 Unified Comfort

Availability In Stock

£2,184.00
  • SIMATIC HMI MTP1000
  • Unified Comfort Panel with touch operation
  • 10.1" widescreen TFT display with 16 million colors
  • PROFINET interface
  • Configurable with WinCC Unified Comfort V16
  • Contains open-source software provided free of charge

Accessories



Product

Manufacturer Material ID -
6AV2128-3KB06-0AX1
Net Weight -
2.76kg

Additional Product Information

Commodity Code -
85371098
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43201503

Technical Specification

Additional software components, loadable -
Degree of protection (IP), front side -
IP65
Height of the front -
205 Millimetre
Number of colours of the display -
16777216
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
4
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of pixels, horizontal -
1280
Number of pixels, vertical -
800
Operating temperature -
0 Degrees celsius
Printer output available -
Process default value (input) possible -
Process value representation (output) possible -
Recess depth -
63.6 Millimetre
Screen diagonal -
10.1 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for other bus systems -
Supporting protocol for TCP/IP -
Type of display -
TFT
Voltage type of supply voltage -
DC
Width of the front -
280 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability In Stock

£2,184.00
Sign in or Register for customer prices.

Additional Information

Did you know, we are an entrusted Siemens approved partner?
