6AV21233MB320AW0

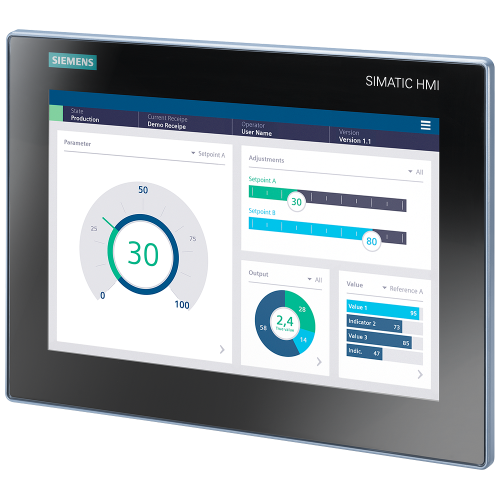

SIMATIC HMI MTP1200, Unified Basic Panel, touch operation, 12" widescreen TFT display, 16 million colors, PROFINET interface,

Manufacturer's No: 6AV2123-3MB32-0AW0     Manufacturer: Siemens

Availability In Stock

£1,903.00
  • Model: SIMATIC HMI MTP1200
  • Type: Unified Basic Panel
  • Display: 12" widescreen TFT with 16 million colors
  • Interface: PROFINET
  • Software: Configurable with WinCC Unified Basic V18 Update 3
  • Includes open-source software
  • Software provided free of charge

Accessories



Product

Manufacturer Material ID -
6AV2123-3MB32-0AW0
Net Weight -
2.77kg

Additional Product Information

Commodity Code -
85371091
Country of Origin -
CN
Export Control Regulations -
AL: N / ECCN: EAR99H
UNSPSC -
43201503

Technical Specification

Degree of protection (IP), front side -
IP65
Height of the front -
237 Millimetre
Number of colours of the display -
16777216
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces parallel -
0
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
2
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of pixels, horizontal -
1280
Number of pixels, vertical -
800
Operating temperature -
0 Degrees celsius
Recess depth -
55 Millimetre
Screen diagonal -
12.1 inch
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for TCP/IP -
Type of display -
TFT
Voltage type of supply voltage -
DC
Width of the front -
326 Millimetre
With alpha numeric keyboard -
With colour display -
With message indication -
With message system (incl. buffer and confirmation) -
With numeric keyboard -
With recipes -

Availability In Stock

£1,903.00
