6AV21252GB230AX0

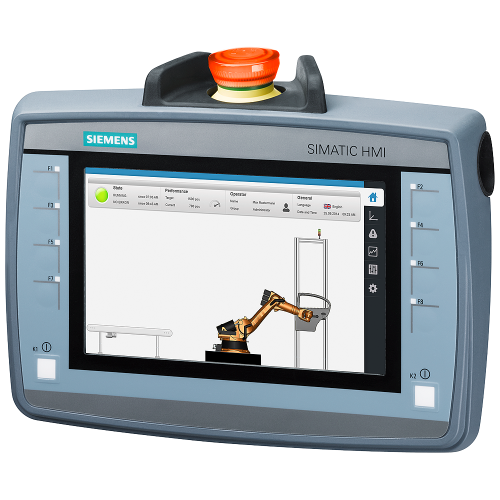

KTP700F Mobile Panels 2nd Generation, 7.0 TFT Touch Display + 8 Function Keys Acknowledgement switch & E-Stop Button

Manufacturer's No: 6AV2125-2GB23-0AX0     Manufacturer: Siemens
KTP700F Mobile Panels 2nd Generation, 7.0 TFT Touch Display + 8 Function Keys Acknowledgement switch & E-Stop Button

View 3D

Availability In Stock

£2,634.00
  • 7.0" TFT display with 800x480 pixel resolution
  • 16m colors for vibrant display
  • Key and touch operation with 8 function keys
  • Connectivity: 1x PROFINET/Industrial Ethernet interface, 1x multimedia card, 1x USB
  • Key-operated switch and acknowledgement button
  • 1 emergency stop/stop button configurable from WinCC Comfort V13 SP1

Accessories



Product

Manufacturer Material ID -
6AV2125-2GB23-0AX0
Net Weight -
1.38kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Number of grey-scales/blue-scales of display -
-
Degree of protection (NEMA) -
UN
Operation temperature -
0 Degrees celsius
Degree of protection (IP) -
IP65
Number of interfaces PROFINET -
1
Type of display -
TFT
Connection, pluggable -
Degree of protection (IP rating) -
IP65
Depth -
89.4 Millimetre
Height -
194.8 Millimetre
Max. height of fall (in accordance with IEC 60068-2-32) -
1.2 Metre
Number of buttons with LED -
8
Number of colours of the display -
16777216
Number of function buttons, programmable -
8
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
1
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of password levels -
50
Number of pixels, horizontal -
800
Number of pixels, vertical -
480
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Process default value (input) possible -
Process value representation (output) possible -
Screen diagonal -
7 inch
Suitable for emergency stop -
Suitable for safety functions -
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
Useful project memory/user memory -
12000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Weight -
1.3 Kilogram
Width -
247.9 Millimetre
With colour display -
With enabling button/emergency-stop switch -
With message indication -
With message system (incl. buffer and confirmation) -
With recipes -
With touch screen -
