6AV21252DB230AX0

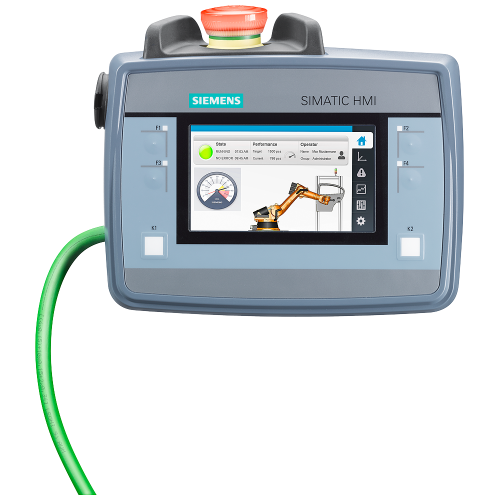

KTP400F Mobile Panels 2nd Generation, 4.3 TFT Touch Display + 4 Function Keys

Manufacturer's No: 6AV2125-2DB23-0AX0     Manufacturer: Siemens
KTP400F Mobile Panels 2nd Generation, 4.3 TFT Touch Display + 4 Function Keys

View 3D

Availability Back Order

£1,339.00
  • 4" widescreen TFT display
  • Touch and Key operation
  • Integrated acknowledgement button
  • Emergency switching-off switch
  • PROFINET interface
  • Configurable from WinCC Comfort V13 SP1 with HSP

Accessories



Product

Manufacturer Material ID -
6AV2125-2DB23-0AX0
Net Weight -
0.88kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503

Technical Specification

-
Siemens
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Number of grey-scales/blue-scales of display -
-
Degree of protection (NEMA) -
UN
Operation temperature -
0 Degrees celsius
Degree of protection (IP) -
IP65
Number of interfaces PROFINET -
1
Connection, pluggable -
Degree of protection (IP rating) -
IP65
Depth -
87 Millimetre
Height -
165.2 Millimetre
Max. height of fall (in accordance with IEC 60068-2-32) -
1.2 Metre
Number of buttons with LED -
4
Number of colours of the display -
16777216
Number of function buttons, programmable -
4
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
1
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
1
Number of HW-interfaces Wireless -
0
Number of online languages -
32
Number of password levels -
50
Number of pixels, horizontal -
480
Number of pixels, vertical -
272
Number of system buttons -
0
Operating temperature -
0 Degrees celsius
Process default value (input) possible -
Process value representation (output) possible -
Screen diagonal -
4.3 inch
Suitable for emergency stop -
Suitable for safety functions -
Supply voltage DC -
19.2 Volt
Supporting protocol for EtherNet/IP -
Supporting protocol for MODBUS -
Supporting protocol for PROFINET IO -
Supporting protocol for PROFIsafe -
Supporting protocol for TCP/IP -
Type of display -
TFT
Useful project memory/user memory -
4000 kiloByte (1000 Byte)
Voltage type of supply voltage -
DC
Weight -
0.7 Kilogram
Width -
192 Millimetre
With colour display -
With enabling button/emergency-stop switch -
With message indication -
With message system (incl. buffer and confirmation) -
With recipes -
With touch screen -
