6AV36883AY360AX0

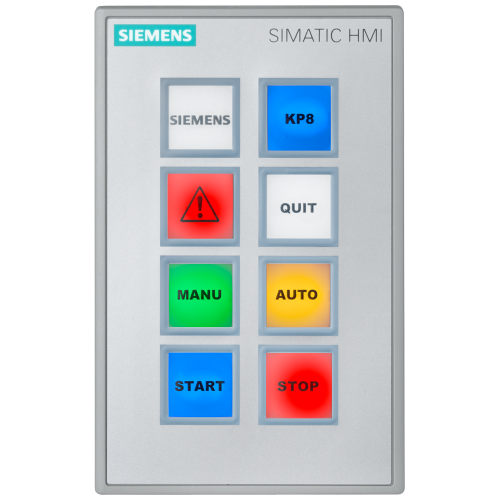

KP8 PN Key Panel, 8 Keys with Multi-Color Led s, PN Interface with 8 Configurable DI/DO

Manufacturer's No: 6AV3688-3AY36-0AX0     Manufacturer: Siemens
KP8 PN Key Panel, 8 Keys with Multi-Color Led s, PN Interface with 8 Configurable DI/DO

View 3D

Availability In Stock

£354.00
  • SIMATIC HMI KP8 PN Key Panel
  • 8 short-stroke switches with multi-colored LEDs
  • PROFINET interface
  • 8 configurable digital input/output pins
  • 24 V DC power supply
  • Parameterizable through STEP 7 V5.5

Accessories



Product

Manufacturer Material ID -
6AV3688-3AY36-0AX0
Net Weight -
0.32kg

Additional Product Information

Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: EAR99H
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
39121521

Technical Specification

-
Siemens
Supply voltage AC 50 Hz -
- Volt
Supply voltage AC 60 Hz -
- Volt
Built-in depth -
49 Millimetre
Operation temperature -
0 Degrees celsius
Number of build in positions for control circuit devices -
0
Number of interfaces PROFINET -
2
Front build in possible -
Degree of protection (IP), front side -
IP65
Front built-in possible -
Height of the front -
155 Millimetre
Number of built-in positions for control circuit devices -
0
Number of buttons -
8
Number of digital inputs -
8
Number of digital outputs -
8
Number of HW-interfaces industrial Ethernet -
2
Number of HW-interfaces other -
0
Number of HW-interfaces parallel -
0
Number of HW-interfaces PROFINET -
2
Number of HW-interfaces RS-232 -
0
Number of HW-interfaces RS-422 -
0
Number of HW-interfaces RS-485 -
0
Number of HW-interfaces serial TTY -
0
Number of HW-interfaces USB -
0
Number of HW-interfaces Wireless -
0
Number of indicator lamps -
8
Number of LED colour modes -
5
Operating temperature -
0 Degrees celsius
Recess depth -
49 Millimetre
Supply voltage DC -
20.4 Volt
Supporting protocol for PROFINET IO -
Voltage type of supply voltage -
DC
Width of the front -
98 Millimetre
With parameterizable buttons -
With test for buttons and indicator lamps -
