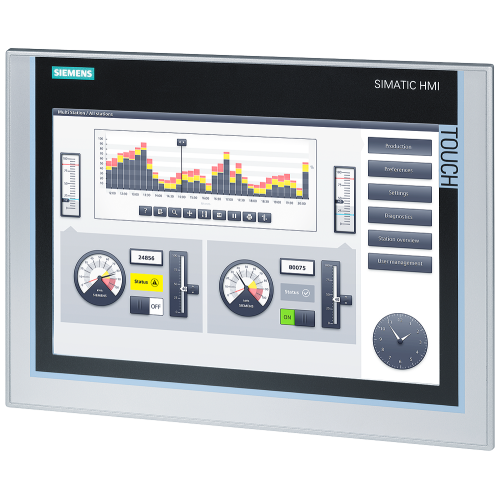

TP1200 Comfort - 12" Colour Touch
warranty

6AV21240MC010AX0

TP1200 Comfort - 12" Colour Touch

Produced by Siemens

Availability In Stock

Price - £2,833.00
SIMATIC HMI TP1200 Comfort, Comfort Panel, Touch operation, 12" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 12 MB configuration memory, Windows CE 6.0 (Microsoft Support included Security updates discontinued) configurable from WinCC Comfort V11
No alternatives available for this product.
Product
Manufacturer Material ID -
6AV2124-0MC01-0AX0
Net Weight -
3.46kg
Additional Product Information
Commodity Code -
85371099
Country of Origin -
DE
Export Control Regulations -
AL: N / ECCN: 5D002ENCU
Minimum Order Quantity -
1
RoHs Compliance -
Yes
UNSPSC -
43201503
Technical Specification
Built-in depth -
65 Millimetre
Number of interfaces PROFINET -
1
Recess depth -
65 Millimetre
Screen diagonal -
12.1 inch
Number of HW-interfaces industrial Ethernet -
1
Number of HW-interfaces RS-485 -
1
Number of HW-interfaces USB -
2
Number of colours of the display -
16777216
Number of pixels, horizontal -
1280
Number of pixels, vertical -
800
Useful project memory/user memory -
12000 kiloByte (1000 Byte)
Number of password levels -
50
Number of online languages -
32
Width of the front -
330 Millimetre
Height of the front -
241 Millimetre
Number of HW-interfaces PROFINET -
1
Supply voltage DC -
19.2 Volt
