• Touch operation
  • PROFINET interface
  • MPI/PROFIBUS DP interface
  • 12 MB configuration memory
  • Windows CE 6.0
  • Configurable from WinCC Comfort V11
  • " />


    6AV21240JC010AX0

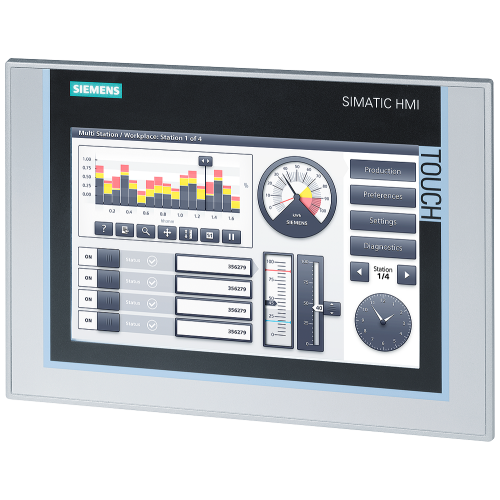

    TP900 Comfort - 9" Colour Touch

    Manufacturer's No: 6AV2124-0JC01-0AX0     Manufacturer: Siemens
    TP900 Comfort - 9" Colour Touch

    View 3D

    Availability In Stock

    £2,244.00
    • SIMATIC HMI TP900 Comfort
    • 9" widescreen TFT display with 16 million colors
    • Touch operation
    • PROFINET interface
    • MPI/PROFIBUS DP interface
    • 12 MB configuration memory
    • Windows CE 6.0
    • Configurable from WinCC Comfort V11

    Accessories



    Product

    Manufacturer Material ID -
    6AV2124-0JC01-0AX0
    Net Weight -
    2.51kg

    Additional Product Information

    Commodity Code -
    85371099
    Country of Origin -
    DE
    Export Control Regulations -
    AL: N / ECCN: 5D002ENCU
    Minimum Order Quantity -
    1
    RoHs Compliance -
    Yes
    UNSPSC -
    43201503

    Technical Specification

    -
    Siemens
    Supply voltage AC 50 Hz -
    - Volt
    Supply voltage AC 60 Hz -
    - Volt
    Touch technology -
    UN
    Degree of protection (NEMA), front side -
    UN
    Built-in depth -
    63 Millimetre
    Operation temperature -
    0 Degrees celsius
    With printer output -
    Number of interfaces PROFINET -
    1
    Recess depth -
    63 Millimetre
    Screen diagonal -
    9 inch
    Operating temperature -
    0 Degrees celsius
    Voltage type of supply voltage -
    DC
    Number of HW-interfaces industrial Ethernet -
    1
    Number of HW-interfaces RS-232 -
    0
    Number of HW-interfaces RS-422 -
    0
    Number of HW-interfaces RS-485 -
    1
    Number of HW-interfaces serial TTY -
    0
    Number of HW-interfaces USB -
    2
    Number of HW-interfaces parallel -
    0
    Number of HW-interfaces other -
    0
    Supporting protocol for TCP/IP -
    Supporting protocol for PROFIBUS -
    Supporting protocol for MODBUS -
    Supporting protocol for other bus systems -
    With colour display -
    Number of colours of the display -
    16777216
    Number of pixels, horizontal -
    800
    Number of pixels, vertical -
    480
    Number of function buttons, programmable -
    0
    With numeric keyboard -
    With alpha numeric keyboard -
    Useful project memory/user memory -
    12000 kiloByte (1000 Byte)
    With message indication -
    With message system (incl. buffer and confirmation) -
    Process value representation (output) possible -
    Process default value (input) possible -
    With recipes -
    Number of password levels -
    50
    Printer output available -
    Number of online languages -
    32
    Additional software components, loadable -
    Degree of protection (IP), front side -
    IP65
    Width of the front -
    274 Millimetre
    Height of the front -
    190 Millimetre
    Number of HW-interfaces PROFINET -
    1
    Number of HW-interfaces Wireless -
    0
    Supporting protocol for EtherNet/IP -
    Supporting protocol for PROFINET IO -
    Supply voltage DC -
    19.2 Volt
    Type of display -
    TFT
    Number of grey-scales/blue-scales of display -
    0
    Number of buttons with LED -
    0
    Number of system buttons -
    0

    Availability In Stock

    £2,244.00
